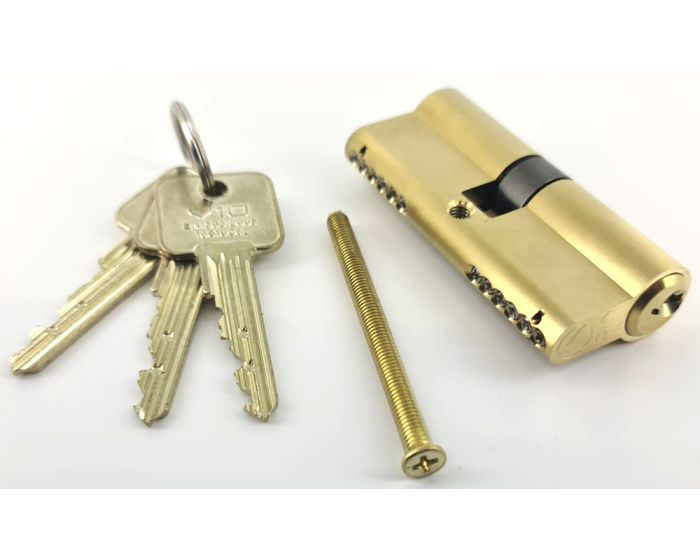

10 Pin Euro Profile Cylinder - Double - Key / Key - Supplied With 3 Keys - Satin Brass

• 10 pin Euro profile double cylinders with key operation from both sides of the door (Key / Key).

• Euro cylinders are the "barrels" that go through the middle of a door, commonly found of UPVC front doors.

• Excellent mid level security range with a high quality architectural finish.

• Tested to BS EN 1303

• Ideal for use on internal or external doors including front doors.

• Supplied with 3 keys.

Operation

• Double cylinder - key operation from both sides.

• Comes supplied with 3 keys and a cylinder fixing screw.

• Key differed - if ordering more then one, the cylinders will come with different keys.

• Suitable for use on wooden, UPVC and metal doors.

• Must be used in conjunction with some form of Euro profile mortice lock or multi-point locking system. (Sold separately)

Security Level

• 10 pin range - excellent mid-level security with 10 pins.

• Tested to BS EN 1303 - Key security grade 6 and cylinder security grade 2* (*when used in conjunction with Eurospec security escutcheons.)

• Suitable for use on internal or external doors including front doors where good mid level security is required.

• If fitting a thumb turn cylinder to a front or back door be aware that if a burglar were to break any glass in the door they could in theory reach down to thumb turn and unlock the mortice lock.

Finish

• Satin Brass

Dimensions

• Equal cylinders (each side of the cam is the same size.)

• To work out the length of cylinder you require you need to add together

• - The thickness of the door. (D) on the below diagram.
• - Plus the thickness of the escutcheon / backplate on each side of the door. (E) on the diagram below.

• For security reasons it's best where possible to have the Euro cylinder finish flush (flat) with the edge of the escutcheon or backplates of the handles fitted to the door.

• Cylinders that stick out past escutcheons and backplates of handles are much more vulnerable to attack as they can more easily be hammered, twisted or cut during an attack.

Standards This Product Conforms To

• 10 Pin Euro profile cylinders have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

• Tested to BS EN 1303 the British / European standard requirements and testing methods covering cylinders for locks.

Options Available To Order

• Keyed Alike (KA) - A batch of cylinders all under the same one key.
• Under Master Key (UMK) - A batch of cylinders all under different keys with one master key which operates any of the cylinders.
• Please contact us for more information and lead times and prices for the above options.

Unit Of Sale

• Each - (1x cylinder with 3x keys and 1x fixing screw.)
