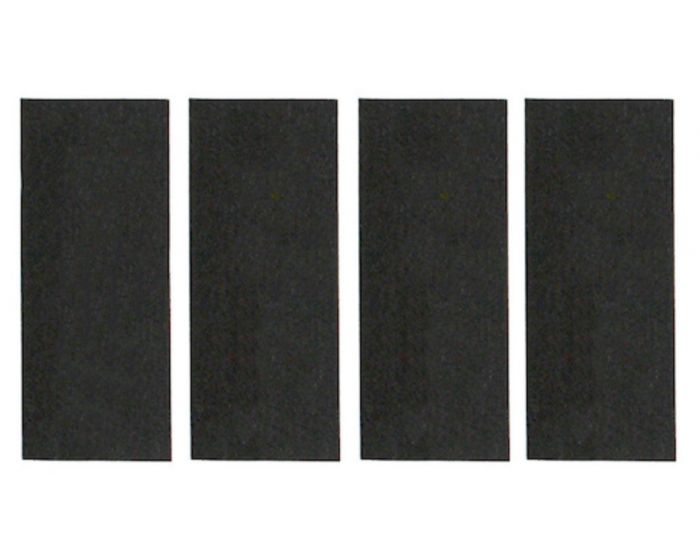

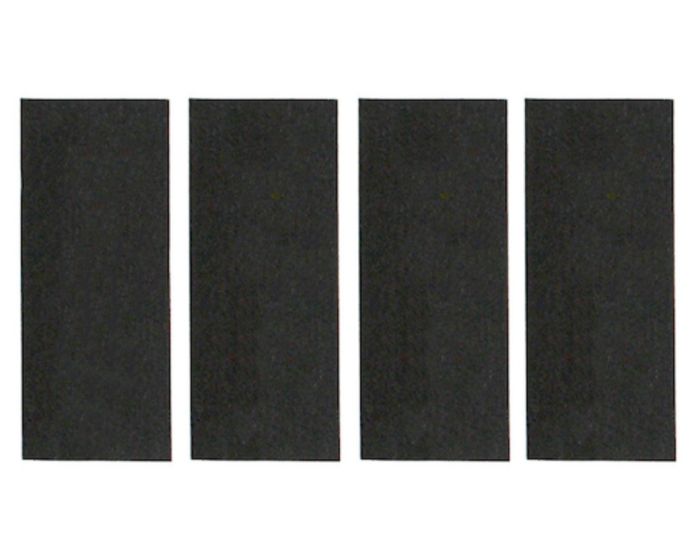

Intumescent Hinge Pad Liners - 100mm x 30mm - For Use On FD30 & FD60 Fire Rated Doors - Monoammonium Phosphate - (4 Pads To Suit 1x Pair Of Hinges)
Catalogue Number:
40897
Related Products
- Monoammonium Phosphate based intumescent hinge liner pads.
- 1mm thick material for use of FD30 fire doors.
- 2mm thick material for use of FD60 fire doors.
- When installing fire rated hinges to fire doors, we strongly recommend that you bed intumescent liners behind each hinge leaf to fully comply with BS EN 1634 test requirements.
- It is a legal requirement for hardware fitted to fire resisting doors to be CE Marked / UKCA Marked.
- When hinges shown as being CE Marked / UKCA Marked are included in a fire resisting test they are fitted to the door and frame with intumescent pads under each leaf.
- You should fit these intumescent pads under any CE Marked / UKCA Marked hinges to comply with the marking requirements.
- Failure to comply and fit intumescent pads in these circumstances will negate the CE marking as the hinges will be fitted in a different way to how the door was fire tested.
- Pack of 4 hinges pads (enough to suit 1 pair of hinges). * See note below *
| Item Code | Hinge Liner Dimensions | To Suit Hinge Size | To Suit Maximum Leaf Width | Fire Rating | Sold Per |
|---|---|---|---|---|---|
| 40897.1 | 100mm x 30mm x 1mm | 102mm x 76mm | 30mm | FD30 | 4 pads - (1 pair of hinges) |
| 40897.2 | 100mm x 30mm x 2mm | 102mm x 76mm | 30mm | FD60 | 4 pads - (1 pair of hinges) |
- * Always check the fire certificate, DoP or third party test evidence to see how the fire rated product has been tested. For example most hinges fitted to a 60 minute FD60 rated fire door will require 2mm thick intumescent liners to be fitted behind each leaf.
| Item | 40897 |
|---|---|
| Item Code | 40897 |
| Finish | - |
| Fire Rated | FD30 / FD60 - Fire Rated |
| Sold Per | 4 Pads - (To Suit 1 Pair Of Hinges) |
| Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
-
