Ideal for meeting insurance requirements for locking sliding sash windows.
Two inserts provided per stop allows the sash window to be locked in the closed or in the open position.
The threaded stops are screwed into inserts located in the top sash by use of key, this prevents ("stops") the sashes passing each other, hence the window is locked and can not be opened.
The sash stops can only be locked and unlocked via the use of the 40809 - sold separately.
Size Details
Item Code
Stop Length
Stop Diameter
Insert Diameter
Insert Length
40796.1
29mm
16mm
10mm
21mm
Base Material
Made from solid brass.
Finish Details
Polished brass.
Alternative Finishes Available
Polished nickel (PVD finish).
Satin chrome - (brushed finish).
Polished chrome.
Florentine bronze.
Fixings

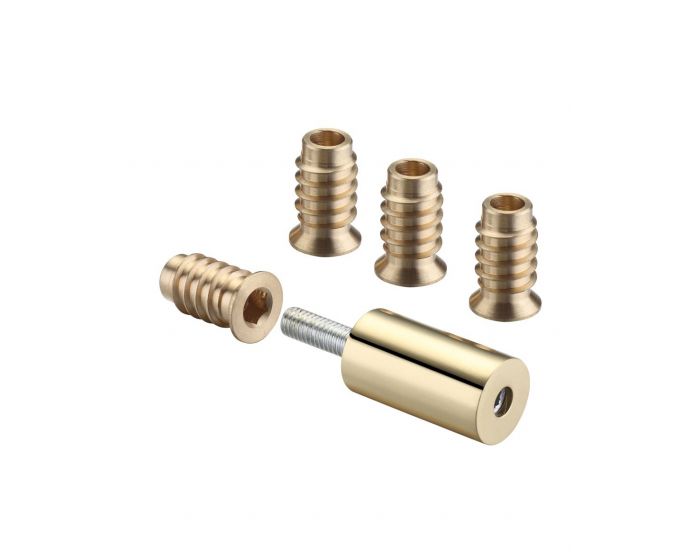

Each stop comes supplied with two inserts to screw into.
Sash window can be locked in the closed position by screwing the sash stop into insert 1 (see below diagram)
The sliding sash window can be locked in the open position for ventilation, by screwing the sash stop into insert 2 (see below diagram)
Usage
Suitable for use with wooden sliding sash windows.
The inserts are fitted into the side rail of the top sash.
Unit Of Sale
Sold per pair - (A pair includes 2 x sash stops 4 x inserts).
