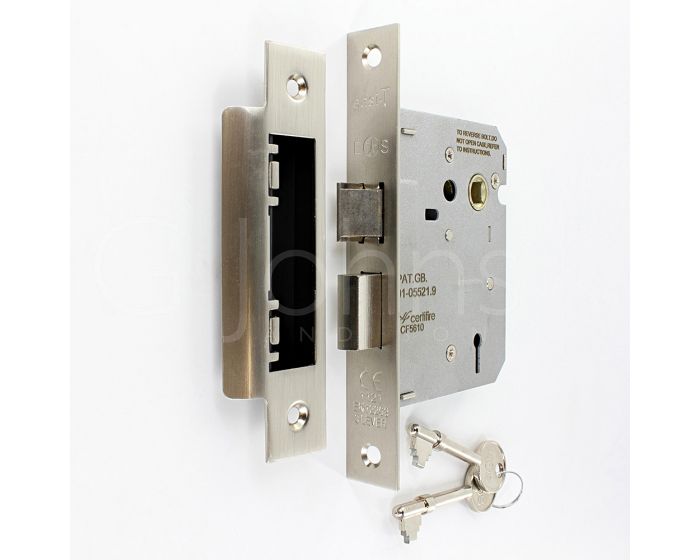

3 Lever Economy Mortice Sash Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - Brushed Satin Nickel

• 3 lever economy range sash lock, with a satin (brushed) nickel finish.

• Basic style 3 lever cut keys - low level security.

• For use on doors that require door handles and need to be locked via a standard "chubb" style key.

• Must be used in conjunction with some form of door handle.

• Comes supplied with a satin nickel forend and frame mounted strike plate.

Operation

• The latch is withdrawn via a lever handle from either side of the door (handles sold separately).

• Deadbolt is locked and unlocked via the supplied cut keys.

Features

• Solid brass deadbolt and latch.

• Medium weight spring strength ideal for use with sprung lever furniture.

• Bolt through facility for bolt-together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Patented latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

Finish

• Satin nickel (brushed finish).

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F1KD2A.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.

• Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for more details.

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and 2 keys).
