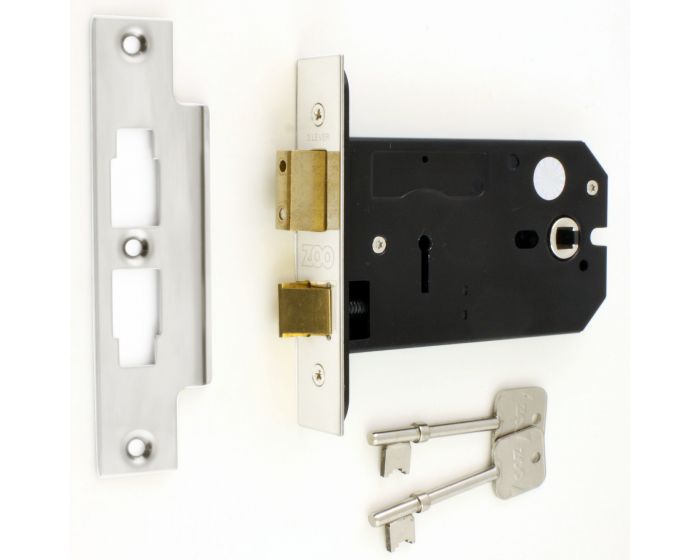

3 Lever Horizontal Mortice Sash Lock - 127mm or 152mm Deep Case - Polished Stainless Steel

Operation

• Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

• Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

• Deadbolt is locked and un-locked via the supplied cut keys.

• Key differed - if ordering more than one lock each lock will come with different keys. (Please contact us if you would like multiple locks under the same key).

Features

• Light to medium weight springing makes this lock ideal for use with door knobs.

• Two way action allows door knobs to be turned in both directions.

• Solid brass guided latch.

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Latch can be reversed on site without taking the lock case apart.

• Supplied with 2 keys.

• Reversible frame mounted strike plate.

Finish

• Polished stainless steel - (shiny finish).

Alternative Finishes Available

• Satin stainless steel.

• PVD brass.

Dimensions

Rebate Kit For Double Rebated Doors

• 40831.1 - 13mm satin stainless steel rebate kit for use with the Zoo Hardware horizontal mortice locks.
• Please note the above rebate kit is a satin (brushed finish).
