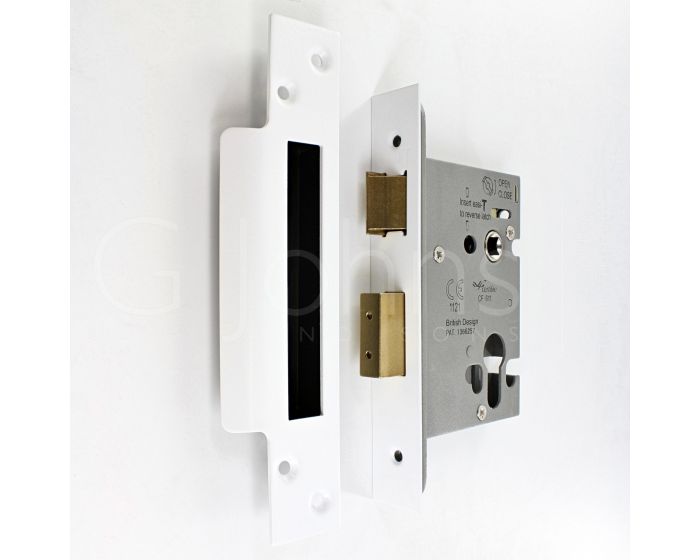

Architectural Quality Euro Profile Mortice Sash Lock Case - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt White

•  Matt white euro profile architectural quality sash lock case.

• For use on doors that require door handles and need to be locked via a Euro profile cylinder.

• 47.5mm Euro centres.

• Must be used in conjunction with some form of door handle and Euro cylinder.

• Supplied with a matt white forend and frame mounted strike plate including black plastic back box.


• Special order - lead time 4-6 weeks.

Operation

• Latch is withdrawn via a lever handle from either side of the door (handles sold separately).

• Deadbolt is locked and un-locked via a  Euro profile cylinder (sold separately).

Features

• Solid brass guided latch.

• Medium to heavy weight springing.

• Adjustable spring strength, ideal for use with sprung or un-sprung lever furniture. (Spring strength can be adjusted by simply removing a screw on the edge of the lock case).

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Patented Easy turn latch reversal mechanism - the latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

Finish

• Matt white

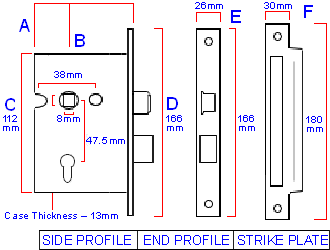

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F2BA20.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.

• Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and plastic back box).
