Auto Locking Multipoint BlueMatic Motor Unit And Wires

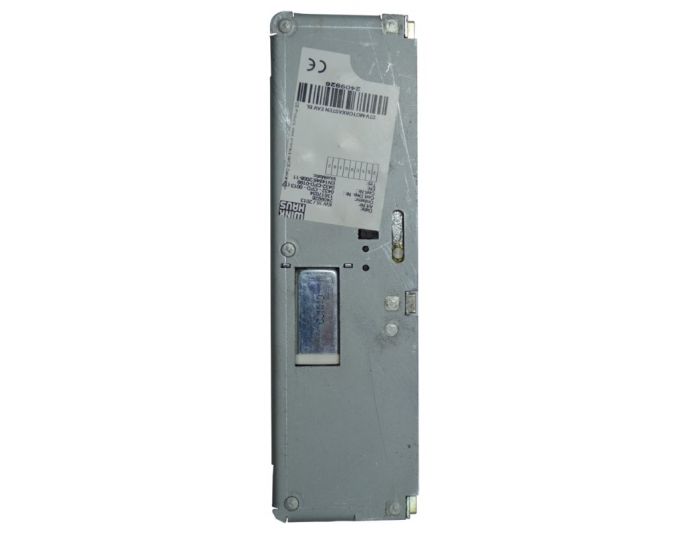

BlueMatic Motor Unit

• Easy to install

• Retro fits to auto locking multipoint Lock

• Can be linked to an intercom system, remote control, etc

• Can be used on UPVC, wooden, aluminium or composite doors

• The lock is designed to accept a “screw on” 12v electronic motor which can then be controlled by means of industry standard access control systems.

• When activated the two solid high tensile steel hooks and central latch are withdrawn thus forming the blueMatic AV2-E. The extreme versatility of the blueMatic Electronic Locking system is achieved through its easy integration with all access control systems which subsequently leads to its suitability for many different applications.

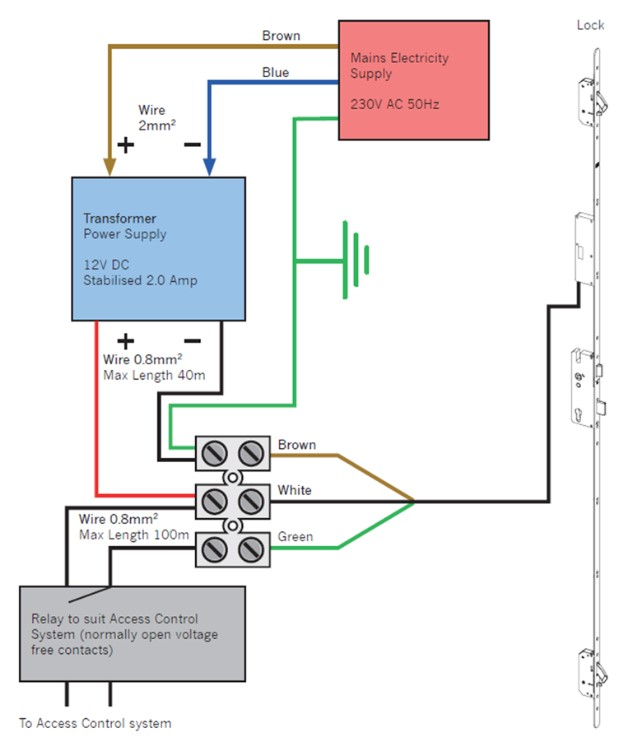

BlueMatic Motor Unit Cables

• Factory fitted plug-in adapter

• 5 Core Wire

• 6 metre cable

• Colour coded for easy of installation

• This colour coded 5 core wire has a factory fitted adaptor and is specifically for use with the auto locking multipoint lock when fitting it with a motor for electronic operation.

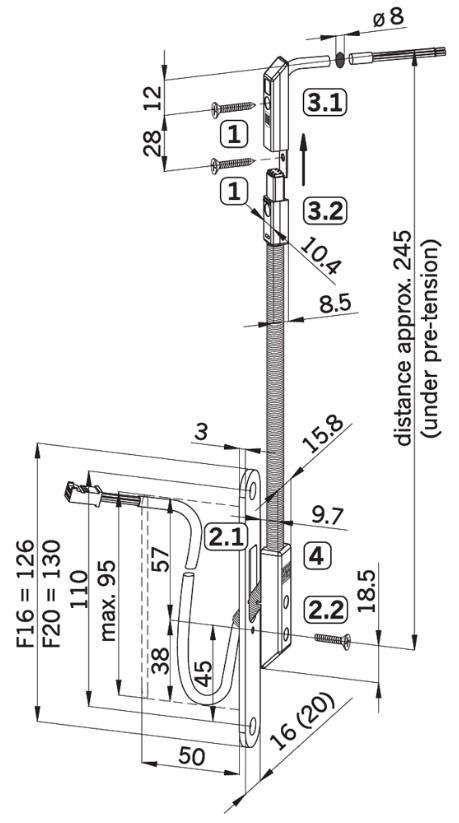

BlueMatic Motor Unit Armoured Door Loop

• Protects cable from door to the frame

• 2 metre cable

• This transition Cable is an armoured door loop which allows the wire to move from the door to the frame in an aesthetically pleasing and secure manner.
