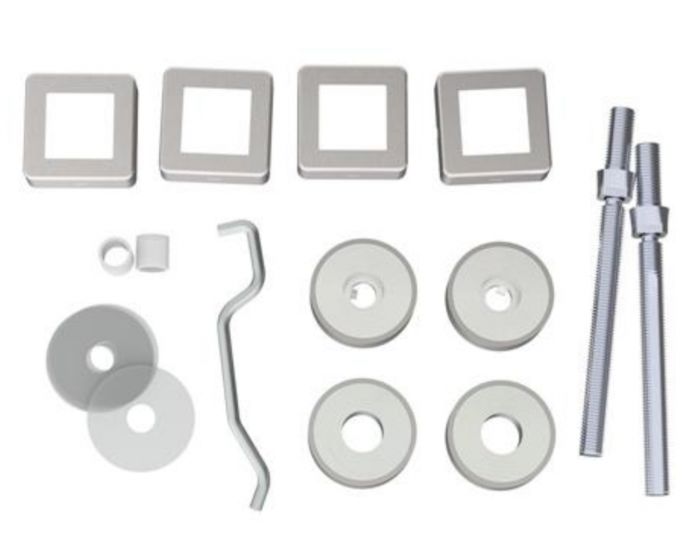

Back To Back Fixing Kit For 22mm x 22mm Square Shape Pull Handles - Satin Stainless Steel

Catalogue Number:

43482

Product Name Price Qty

43482.1 - Back To Back Fixing Kit For Square Shape Pull Handles - 22mm x 22mm - To Suit 22mm x 22mm Square Pull Handles - Satin Stainless Steel - (Pair)

£16.49 £13.74

Per Pair

Enquire Now

Description

Satin stainless steel back to back fixing kit for square shape pull handles.

Allows 2x square shape bolt through fixing pull handles to be fitted to either side of a door as a back to back pair.

Suitable for wooden, metal or glass doors.

Suits door thicknesses between 12mm - 55mm

Satin Stainless Steel

Suitable for use with 22mm x 22mm square section pull handles only,

Please note when fitted the square shape pull handles will end up with a 30mm x 30mm square collar around the post of the handle.

Please see the downloads tab for installation instructions.

Supplied as a pair (to connect 2 x square shape pull handles together).

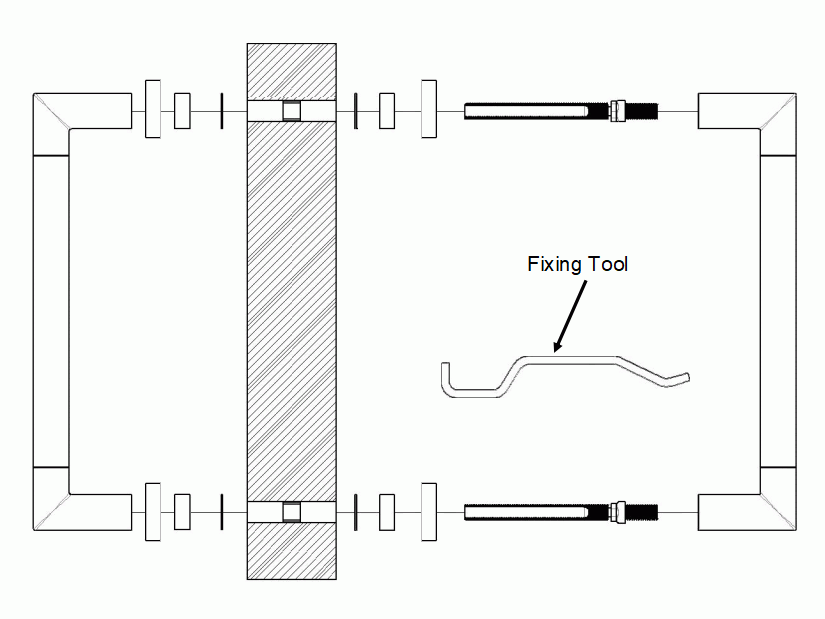

Diagram Showing The Back To Back Fixing Kit For Square Shape Pull Handles

Download

Download PDF Data Sheet

Specification

More Information
Item	43482
Item Code	43482
Finish	Satin Stainless Steel
Dimensions	To Suit 22mm x 22mm Pull Handles
Sold Per	Pair
Availability	Non stock product - please allow 3-7 days for delivery
