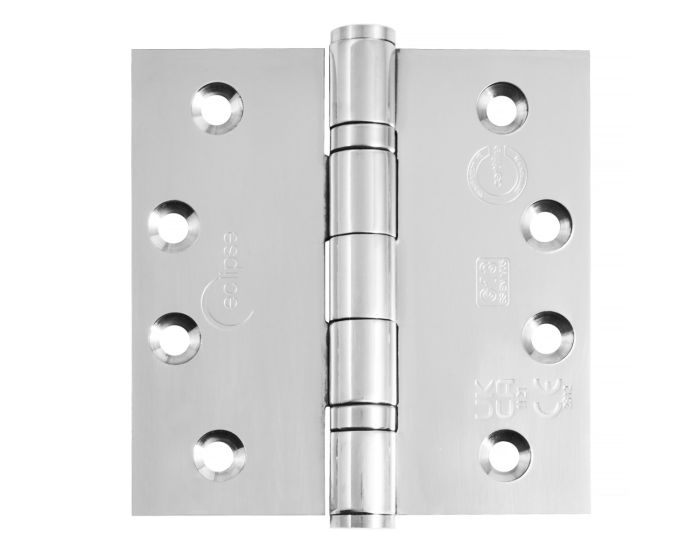

Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm - Polished Stainless Steel
Catalogue Number:
50539
- Broad butt projection hinges for double, patio and French doors
- Hinges allow doors to fold back on its self 180 degrees
- Ball bearing design
- One hour fire rated - suitable for use on FD30 and FD60 fire doors.
- Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight
Finish
- Polished Stainless Steel
Dimensions
Available in 1 Size only
(102mm x 102mm x 3mm)
|
20932.1
|
Dimension On Diagram
|
|
| Height |
102mm
|
A
|
| Width |
102mm
|
B
|
| Leaf Width |
43mm
|
C
|
| Projection given |
50mm
|
D
|
| Thickness |
3mm
|
N/A
|
Important Info Before You Buy
- Broad butt projection hinges are used to help project or "throw" a door pastan obstruction so it can fold back on it's self 180degrees
- Suitable for wooden doors
- Stainless steel base material, suitable for internal or external use.
- The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant
- To meet fire regulations 3 hinges must be fitted per door and intumescent pads must be fitted behind each leaf.
Unit Of Sale
- Hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
| Item | 50539 |
|---|---|
| Item Code | 50539 |
| Finish | Polished Stainless Steel |
| Dimensions | 102mm x 102mm |
| Fire Rated | FD30 / FD60 - Fire Rated |
| Sold Per | Pair |
| Availability | Non stock product - Please allow 2-4 days for delivery |
Non stock product - Please allow 2-4 days for delivery
-
