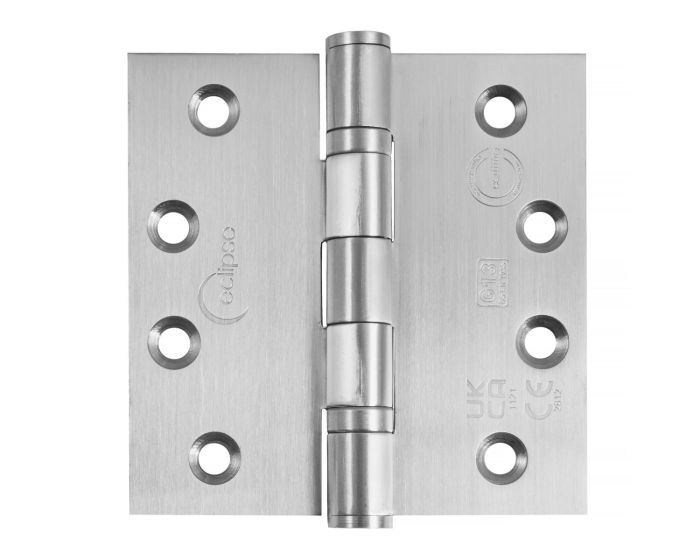

Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm - Satin Stainless Steel

Catalogue Number:
50538
Full Description
Product Name Price Qty
50538.1 - Ball Bearing Broad Butt Projection Hinges - Grade 13 - Fire Rated - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 102mm - Satin Stainless Steel - Pair - (2 Hinges)
£10.24 £8.53

Per Pair
Enquire Now
  • Broad butt projection hinges for double, patio and French doors
  • Hinges allow doors to fold back on its self 180 degrees
  • Ball bearing design
  • One hour fire rated - suitable for use on FD30 and FD60 fire doors.
  • Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight

Finish

  • Satin stainless steel

Dimensions

Diagram of a stainless steel grade 13 broad butt hinge

Available in 1 Size only

(102mm x 102mm x 3mm)


20932.1
Dimension On Diagram
Height
102mm
A
Width
102mm
B
Leaf Width
43mm
C
Projection given
50mm
D
Thickness
3mm
N/A

Important Info Before You Buy

  • Broad butt projection hinges are used to help project or "throw" a door pastan obstruction so it can fold back on it's self 180degrees
Diagram of why regular hinges can't be usedDiagram of how parliament hinges work


  • Suitable for wooden doors
  • Stainless steel base material, suitable for internal or external use.
  • The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant
  • To meet fire regulations 3 hinges must be fitted per door and intumescent pads must be fitted behind each leaf.

Unit Of Sale

  • Hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
More Information
Item 50538
Item Code 50538
Finish Satin Stainless Steel
Dimensions 102mm x 102mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - Please allow 2-4 days for delivery
