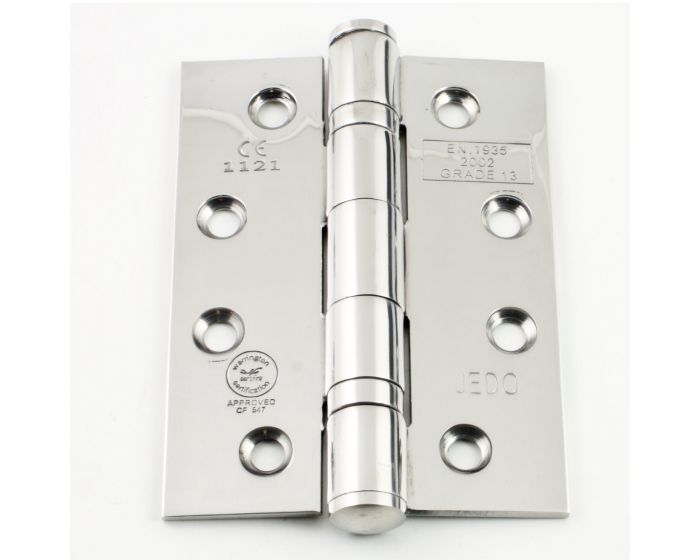

Ball Bearing Grade 13 Fire Rated Hinges - CE / UKCA Marked - Certifire Approved - Polished Stainless Steel - 102mm x 76mm

Catalogue Number:
20931
Full Description Related Products
Product Name Price Qty
20931.1 - Ball Bearing Grade 13 Fire Rated Hinges - CE / UKCA Marked - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Polished Stainless Steel - Pair
£7.44 £6.20

Per Pair - (2 Hinges)
Enquire Now
  • Grade 13 - one hour fire rated hinges suitable for internal or external doors
  • Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight
  • Ball bearings located in the knuckle of hinge, for excellent strength and wear-ability

Finish

  • Polished stainless steel

Dimensions

Diagram of a hinge

20931.1
Dimension On Diagram
Height (H)
102mm
A
Width (W)
76mm
B
Leaf Width
30mm
C
Thickness
3mm
N/A

Important Info Before You Buy

  • Suitable for wooden doors
  • These hinges should be used on any door that has to pass fire regulations
  • The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant
  • Base material is stainless steel
  • Stainless steel is a very hardwearing finish ideal for use on internal or external doors
  • These grade 13 fire rated hinges have 2 ball bearings in the knuckle for excellent strength and wear-ability
  • We recommend this hinge for glazed or heavy weight internal or external doors
  • For medium weight or light weight internal doors we recommend the 76mm x 50mm Stainless Steel hinges
  • PLEASE NOTE TO PASS FIRE REGULATIONS THREE HINGES MUST BE FITTED PER DOOR (PAIR AND A HALF PER DOOR)
  • Hinges are sold and priced in pairs and come supplied with screws
More Information
Item 20931
Item Code 20931
Finish Polished Stainless Steel
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair - (2 Hinges)
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
