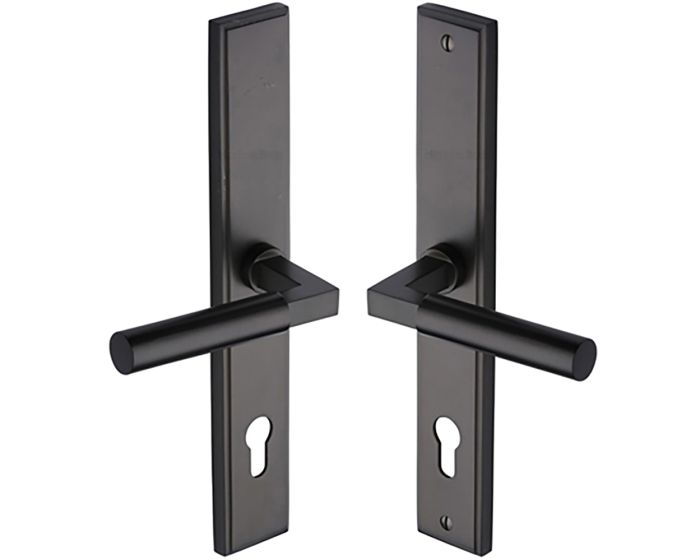

Bauhaus Lever Multi Point Door Lever Handles - 92mm Euro Centres - 259mm Bolt Centres - 285mm x 44mm Back Plate - Matt Bronze (Lacquered)
Catalogue Number:
50360
- Designed for use with multi-point locking systems on timber, UPVC and composite doors
- The handles are designed for use on external doors including front door, back doors and French patio doors
- Lift handle to lock system designed to work with the majority of new multi-point locking systems
- The square backplate is fitted with a special spring to allow the handle to lift to lock and ensuring smooth operation every time
Operation
- Lever handle on either side of the door
- Lift handle to lock
- Our Multi Point Door Hardware is fixed by two bolts from the inside plate to the outside plate
- See below for handing.
- Left-Handed set illustrated:
- Right-Handed set illustrated:
Dimensions
- Backplate Size: 285mm x 44mm x 10mm
- Handle Length: 128mm
- Projection: 77mm
- Centres: 92mm
- Fixing Centres: 259mm
Finish
- Matt Bronze
Standards This Product Conforms To
- Suitable for domestic use
- Suitable for commercial use
Unit Of Sale
- Pair - (1 x left hand and 1 x right hand door handle)
| Item | 50360 |
|---|---|
| Item Code | 50360 |
| Finish | Matt Bronze (Lacquered) |
| Dimensions | 92mm Euro Centres - 259mm Bolt Centres - 285mm x 44mm Back Plate |
| Sold Per | Pair |
| Availability | Non stock product - Please allow 2-4 days for delivery |
Non stock product - Please allow 2-4 days for delivery
-
