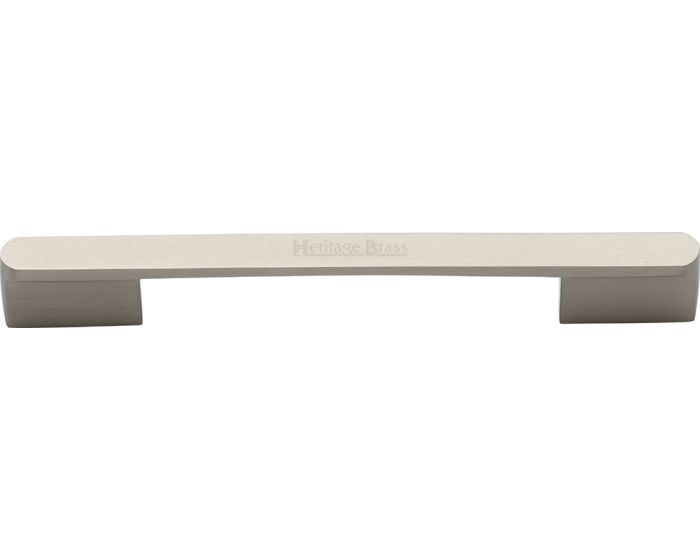

Bridge Design Cabinet Pull Handle - Available In Three Sizes - Satin Nickel

Catalogue Number:

50144

Product Name Price Qty

50144.1 - Bridge Design Cabinet Pull Handle - 127mm Length (96mm Fixing Centres) - Satin Nickel - Each

£14.17 £11.81

Per Each

50144.2 - Bridge Design Cabinet Pull Handle - 190mm Length (128mm & 160mm Fixing Centres) - Satin Nickel - Each

£19.68 £16.40

Per Each

50144.3 - Bridge Design Cabinet Pull Handle - 241mm Length (192mm & 224mm Fixing Centres) - Satin Nickel - Each

£24.30 £20.25

Per Each

Enquire Now

Ideal for use on contemporary units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Item code	Length	Width	Fixing Centres (Inner)	Fixing Centres (Outer)	Base Size	Projection
50144.1	127mm	15mm	96mm	96mm	25mm x 7mm	24mm
50144.2	190mm	15mm	128mm	160mm	38mm x 7mm	24mm
50144.3	241mm	15mm	192mm	224mm	38mm x 7mm	24mm

*50144.2 & 50144.3 Have Two Fixing Centres*

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors

Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

More Information
Item	50144
Item Code	50144
Finish	Satin Nickel
Dimensions	127mm Length (96mm Fixing Centres) & 190mm Length (128mm & 160mm Fixing Centres) & 241mm Length (192mm & 224mm Fixing Centres)
Sold Per	Each
Availability	Non stock product - Please allow 2-4 days for delivery
