Broad Butt Projection Hinges - Polished Brass (Lacquered) - Available in Four Sizes

Skip to the end of the images gallery

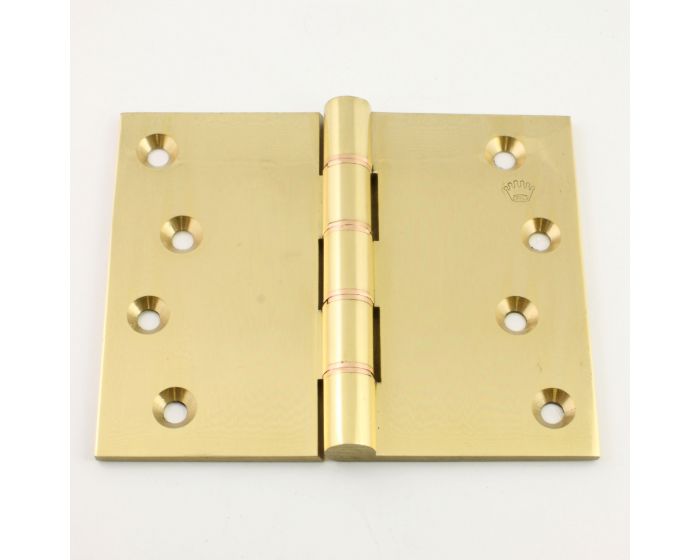

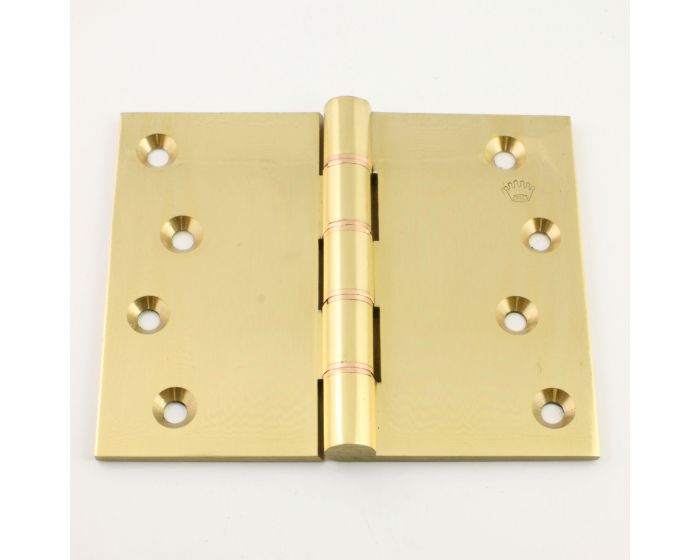

main product photo

Skip to the beginning of the images gallery

Broad Butt Projection Hinges - Polished Brass (Lacquered) - Available in Four Sizes

Catalogue Number:

15176

Full Description

Product Name Price Qty

15176.1 - Broad Butt Projection Hinges - Polished Brass (Lacquered) - 102mm x 102mm - Pair

£33.86 £28.22

Per Pair - (2 Hinges)

15176.2 - Broad Butt Projection Hinges - Polished Brass (Lacquered) - 102mm x 127mm - Pair

£43.08 £35.90

Per Pair - (2 Hinges)

15176.3 - Broad Butt Projection Hinges - Polished Brass (Lacquered) - 102mm x 152mm - Pair

£61.78 £51.48

Per Pair - (2 Hinges)

15176.4 - Broad Butt Projection Hinges - Polished Brass (Lacquered) - 102mm x 203mm - Pair

£134.11 £111.76

Per Pair - (2 Hinges)

Broad butt projection hinges for double, patio and French doors

Hinges allow the door to fold back on itself 180 degrees

Suitable for heavy internal or external doors

Hinges are sold in pairs and come with screws provided

Broad butt projection hinges for double, patio and French doors

Hinges allow the door to fold back on itself 180 degrees

Suitable for heavy internal or external doors

Finish

Polished brass

Dimensions

Diagram of a hinge

Available in 4 Sizes

15176.1 - (102mm x 102mm x 3mm)

15176.2 - (102mm x 127mm x 3.5mm)

15176.3 - (102mm x 152mm x 3.5mm)

15176.4 - (102mm x 203mm x 4.5mm)

	15176.1	15176.2	15176.3	15176.4	Dimension On Diagram
Height	102mm	102mm	102mm	102mm	A
Width	102mm	127mm	152mm	203mm	B
Leaf Width	45mm	57mm	69mm	95mm	C
Max Projection Given	44mm	67mm	82mm	114mm	D
Thickness	3mm	3.5mm	3.5mm	4.5mm	N/A

Important Info Before You Buy

Broad butt projection hinges are used to help project or "throw" a door past an obstruction so it can fold back on itself 180degrees

Diagram of why regular hinges can't be used

Diagram of how parliament hinges work

Suitable for wooden doors

Base material is brass highly polished with lacquer protection

These hinges are suitable for heavy doors. The broad butts have large knuckle and phosphor bronze washers providing much greater strength and wear-ability compared to parliament hinges

Hinges are sold and priced in pairs and come supplied with screws

Download PDF Data Sheet

More Information
Item	15176
Item Code	15176
Finish	Polished Brass (Lacquered)
Sold Per	Pair - (2 Hinges)
Availability	Non stock product - please allow 3-7 days for delivery
