Broad Butt Projection Hinges - Satin Chrome - Available in Four Sizes

Skip to the end of the images gallery

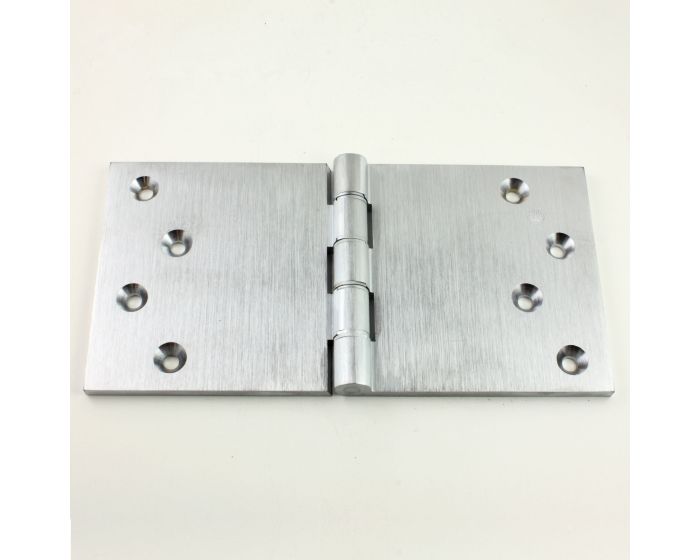

main product photo

Skip to the beginning of the images gallery

Broad Butt Projection Hinges - Satin Chrome - Available in Four Sizes

Catalogue Number:

15177

Full Description

Product Name Price Qty

15177.1 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 102mm - Pair

£37.66 £31.38

Per Pair - (2 Hinges)

15177.2 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 125mm - Pair

£46.87 £39.06

Per Pair - (2 Hinges)

15177.3 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 152mm - Pair

£66.38 £55.32

Per Pair - (2 Hinges)

15177.4 - Broad Butt Projection Hinges - Satin Chrome - 102mm x 203mm - Pair

£147.65 £123.04

Per Pair - (2 Hinges)

Suitable for wooden doors

Base material is brass that has been satin chrome plated

These hinges are suitable for heavy doors. The broad butts have large knuckle and phosphor bronze washers providing much greater strength and wear-ability compared to parliament hinges

Hinges are sold and priced in pairs and come supplied with screws

Broad butt projection hinges for double, patio and French doors

Hinges allow doors to fold back on its self 180 degrees

Suitable for heavy internal or external doors

Finish

Satin chrome

Dimensions

Diagram of a hinge

Available in 4 Sizes

15177.1 - (102mm x 102mm x 3mm)

15177.2- (102mm x 127mm x 3.5mm)

15177.3 - (102mm x 152mm x 3.5mm)

15177.4 - (102mm x 203mm x 4.5mm)

	15177.1	15177.2	15177.3	15177.4	Dimension On Diagram
Height	102mm	102mm	102mm	102mm	A
Width	102mm	127mm	152mm	203mm	B
Leaf Width	45mm	57mm	69mm	95mm	C
Projection given	44mm	67mm	82mm	114mm	D
Thickness	3mm	3.5mm	3.5mm	4.5mm	N/A

Important Info Before You Buy

Broad butt projection hinges are used to help project or "throw" a door past an obstruction so it can fold back on it's self 180degrees

Diagram of why regular hinges can't be used

Diagram of how parliament hinges work

Suitable for wooden doors

Base material is brass that has been stain chrome plated

Hinges suitable for heavy doors. The broad butts have large knuckle and phosphor bronze washers providing much greater strength and wear-ability compared to parliament hinges

Hinges are sold and priced in pairs and come supplied with screws

Download PDF Data Sheet

More Information
Item	15177
Item Code	15177
Finish	Satin Chrome
Sold Per	Pair - (2 Hinges)
Availability	Non stock product - please allow 3-7 days for delivery

Non stock product - please allow 3-7 days for delivery
