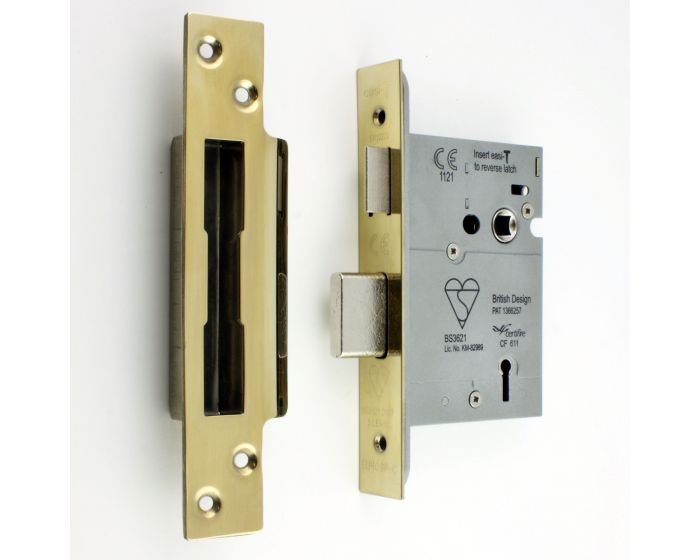

5 Lever British Standard Kite Marked Mortice Sash Lock - BS3621 Rated - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Brass PVD Plated

• 5 Lever British Standard sash lock.

• PVD Brass finish.

• Kite marked security lock for external doors including, front doors, back doors and garage doors. Tested to the British standard BS 3621.

• Insurance approved, BS 3621 rated.

• Sash locks have a latch mechanism built into the lock case and are designed to be used with a pair of door handles.

• Key operation from either side of the door via a cut "Chubb style" key.

• Supplied with brass finish forend and strike plate.

• Police preferred specification - Secured By Design (SBD) approved.

• Mortice lock available in two sizes 64mm or 76mm (case depth).

• Supplied with 2 keys

Operation

• 8mm spindle for use with standard UK door handles.

• Key operation from both sides.

• Key differed - if ordering more than one, each lock will come with different keys.

• Suitable for use on timber doors.

Security Level

• Tested to BS EN 12209 the British / European standard requirements and testing methods covering locks and latches. Classification number 2H810F7KD2B

• Stainless steel deadbolt with 20mm throw (bolt is thrown 20mm via one turn of the key only).

• Police preferred specification - Secured By Design (SBD) approved.

• High security, suitable for use on external front doors.

Finish

• PVD Brass - (shiny finish ideal for matching with brass, gold and PVD products).

Alternative Finishes Available

• Polished stainless steel

• Satin stainless steel

• Florentine bronze

Dimensions

• Will work with standard UK door handles.

• 8mm spindle hole.

• 57mm centres between the spindle hole and keyhole.

Standards This Product Conforms To

• Police preferred specification - Secured By Design (SBD) approved.

• Kite marked - This lock meets the current British standard for locks fitted to external doors, including front doors.

• Insurance approved.

• Tested and passed to BS 3621:2007. The British standard requirements and test methods covering thief resistant lock assemblies with key egress (key egress - operating the lock via key from the inside of the door).

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F7KD2B.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• Certifire approved

• CE Marked / UKCA Marked

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• Keyed Alike (KA) - A batch of locks all under the same one key.

• Please contact us for more information and lead times and prices for the above options.
