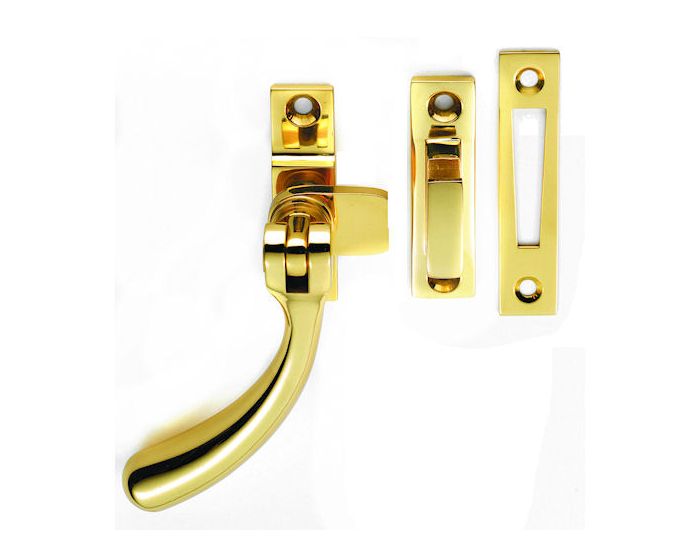

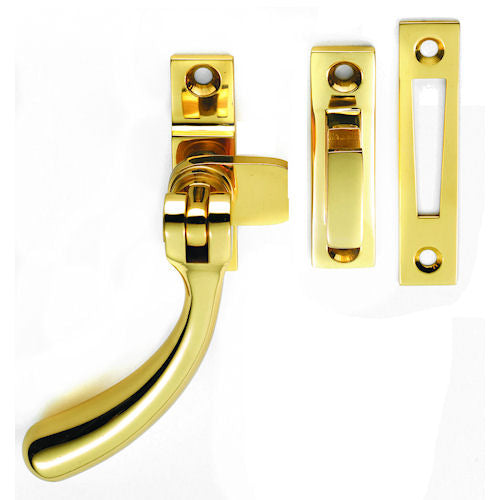

Bulb End Window Fastener - Suitable For Use On Weather Stripped Windows - Polished Brass (Lacquered)

Catalogue Number:
21730
Full Description
Product Name Price Qty
21730.1 - Bulb End Window Fastener - Suitable For Use On Weather Stripped Windows - Tested For Use With FD30 / FD60 Fire Doors - Polished Brass (Lacquered) - Each
£26.46 £22.05

Per Each
Add to Mood Board
Enquire Now
  • 21730.1 - polished brass bulb end window fastener.
  • Traditional hevay quality design.
  • Suitable for use on weather stripped (draught proofed) timber windows.
  • This casement fastener is designed to be fixed on the side of the window and is the handle used to keep the window closed.
  • This fastener is reversible so can be used on windows hung on the left or right.


Base Material

  • Brass.

Finish

  • Polished brass - (shiny finish).

Dimensions

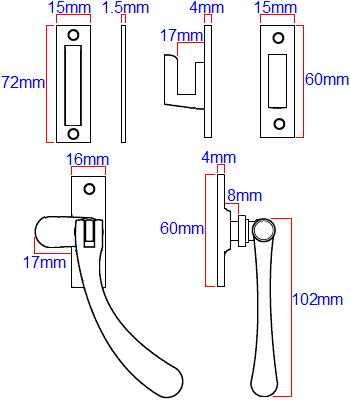

Diagram showing dimensions of the WF11 bulb end design casement window fastener


  • Back Plate - Height - 60mm x Width - 16mm
  • Handle Length - 102mm
  • Tag Length - 17mm
  • Step Distance - 8mm
  • Mortice Plate - Height - 72mm x Width - 15mm
  • Hook Plate - Height - 60mm x Width - 15mm

Important Info Before You Buy

  • Suitable for wooden windows.
  • Comes supplied with mortice plate and hook plate.
  • For standard outward opening windows the mortice plate is used.
  • For double windows or where the window sits flush with the frame the hook plate is used.
  • Suitable for use on weather stripped windows.
  • Matching window stay to open and close the window also available.
Download PDF Data Sheet
More Information
Item 21730
Item Code 21730
Finish Polished Brass (Lacquered)
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
