Buster & Punch Linear Pattern Cabinet Pull Bar Handle With Back Plate - Available In Three Sizes - Satin Stainless Steel

Catalogue Number:

48259

Product Name Price Qty

48259.1 - Linear Pattern Cabinet Pull Bar Handle - 150mm Handle Length (125mm Fixing Centres) - Back Plate - 190mm x 15mm - Satin Stainless Steel - Each

£70.00 £58.33

Per Each

48259.2 - Linear Pattern Cabinet Pull Bar Handle - 250mm Handle Length (225mm Fixing Centres) - Back Plate - 290mm x 15mm - Satin Stainless Steel - Each

£81.00 £67.50

Per Each

48259.3 - Linear Pattern Cabinet Pull Bar Handle - 350mm Handle Length (325mm Fixing Centres) - Back Plate 390mm x 15mm - Satin Stainless Steel - Each

£91.00 £75.83

Per Each

Enquire Now

Description

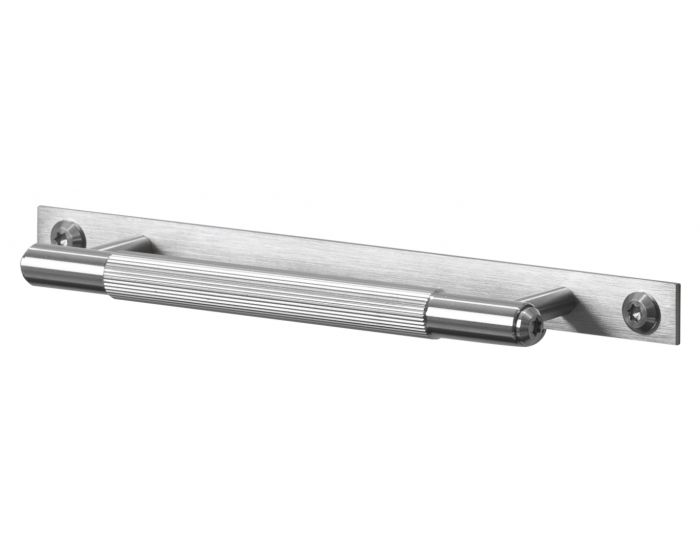

Buster & Punch linear pattern cabinet pull bar handle with backplate, satin stainless steel.

Industrial design with long linear ribbed pattern and solid metal backplate, finished with torx screws.

Ideal for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

Available in three sizes:

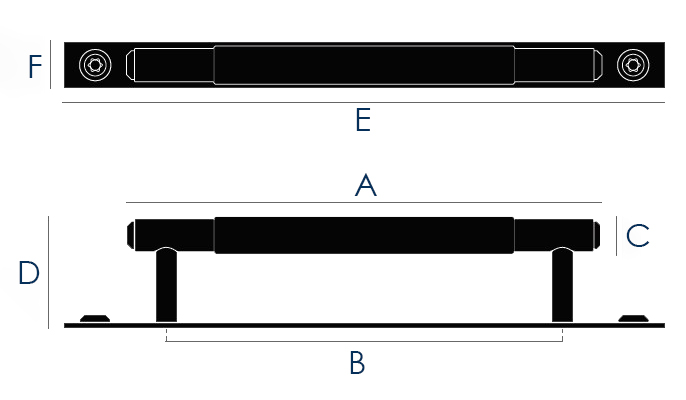

Buster & Punch Linear Pattern Pull Bar Handle With Back Plate - Dimensions Diagram

Item Code	Overall Length (A)	Fixing Centres (B)	Bar Diameter (C)	Projection (D)	Backplate Length (E)	Backplate Width (F)
48259.1	150mm	125mm	12mm	36mm	190mm	15mm
48259.2	250mm	225mm	12mm	36mm	290mm	15mm
48259.3	350mm	325mm	12mm	36mm	390mm	15mm

Finish Details

Satin Stainless Steel

Fixings

This cupboard handle is fitted via M5 bolts from the rear of the door / drawer - see below diagram.

Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.

Supplied with a 25mm long bolt - suitable for use on 18mm thick doors.

For doors thicker then 18mm, longer M5 fixing bolts are required, please contact us with your requirements.

Unit Of Sale

Each - (1 x cupboard handle).

Download

Download PDF Data Sheet

Specification

More Information
Item	48259
Item Code	48259
Finish	Satin Stainless Steel
Dimensions	150mm / 250mm / 350mm Lengths
Sold Per	Each
Availability	Non stock product - please allow 5-7 days for delivery
