Cast Pear Drop Casement Stay - Black

Catalogue Number:

44303

Full Description

Product Name Price Qty

44303.1 - Cast Pear Drop Casement Stay - 203mm - Black - Each

£14.86 £12.38

Per Each

44303.2 - Cast Pear Drop Casement Stay - 254mm - Black - Each

£16.44 £13.70

Per Each

44303.3 - Cast Pear Drop Casement Stay - 305mm - Black - Each

£17.42 £14.52

Per Each

Enquire Now

Description

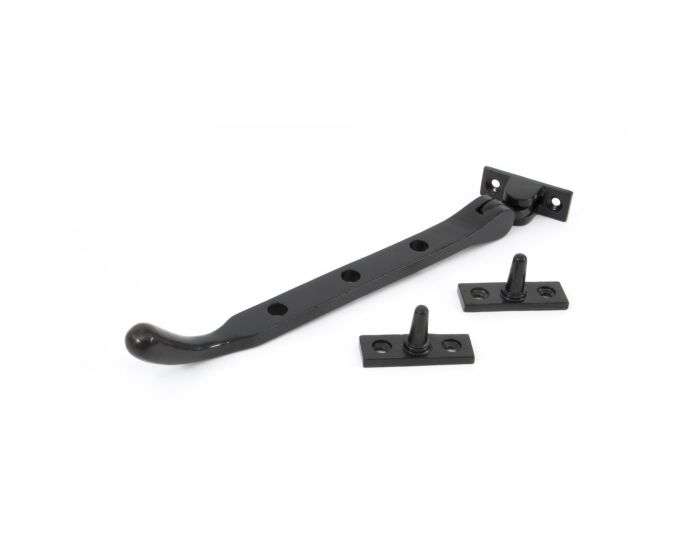

Cast Pear Drop traditional style casement window stay.

A casement stay is the handle or arm that fixes to the bottom of the window to help push the window open and pull the window closed.

The casement arm sits on pins which makes the window "stay" in position when in the open or closed position.

Finish

Black

Dimensions

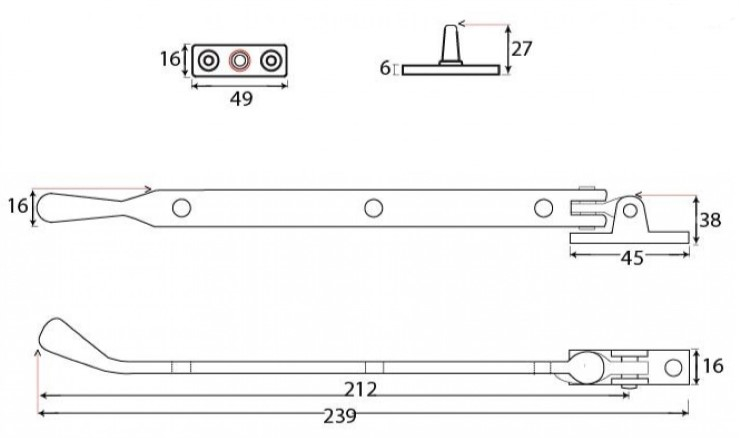

- 8 Inch (203mm)

Overall Length: 239mm

Stay Arm: 212mm

Fixing Plate: 45mm x 16mm

cast-pear-drop-casement-stay-black-8-inch-diagram

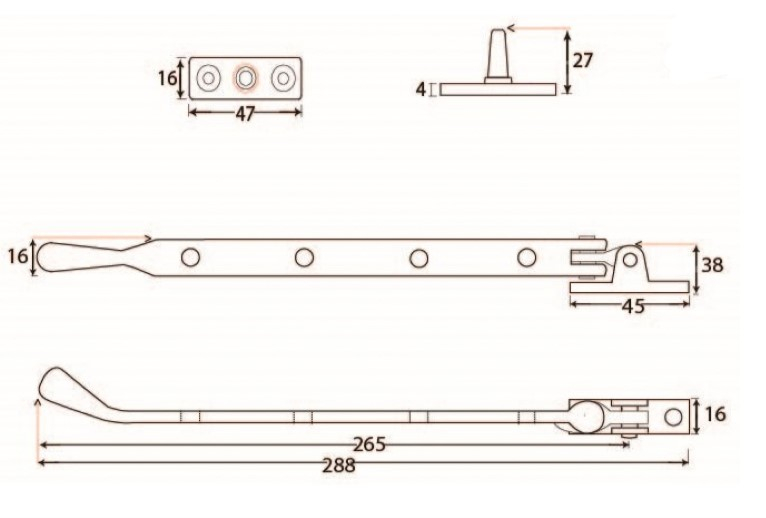

- 10 Inch (254mm)

Overall Length: 288mm

Stay Arm: 265mm

Fixing Plate: 45mm x 16mm

cast-pear-drop-casement-stay-black-10-inch-diagram

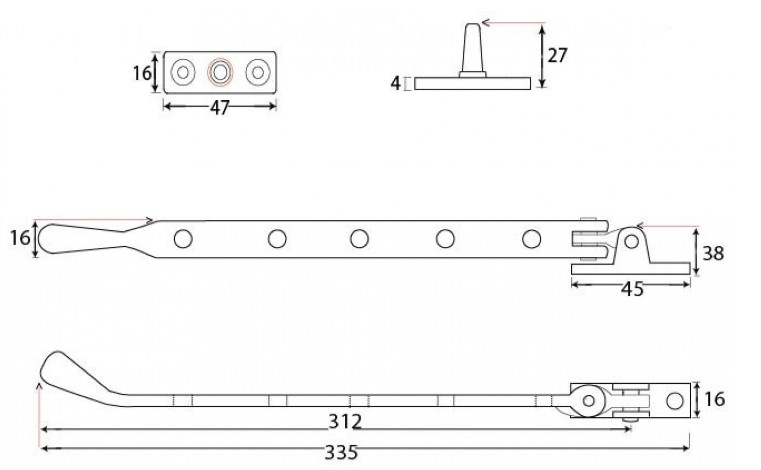

- 12 Inch (305mm)

Overall Length: 335mm

Stay Arm: 312mm

Fixing Plate: 45mm x 16mm

cast-pear-drop-casement-stay-black-12-inch-diagram

Important Info Before You Buy

Suitable for use on timber windows.

Suits standard outward opening casement windows.

Comes supplied with fixing screws and pins.

Matching window fastener also available

Matching window stay pin also available

Download

Download PDF Data Sheet

Specification

More Information
Item	44303
Item Code	44303
Finish	Black
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery

Delivery

Non stock product - please allow 3-7 days for delivery
