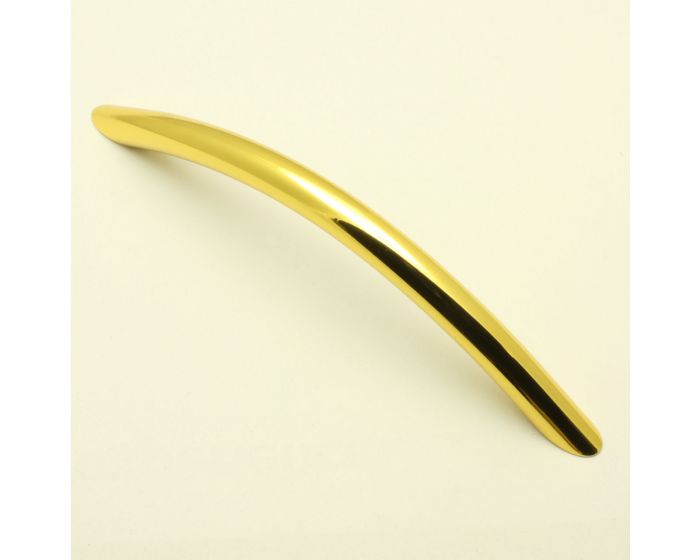

Classic Bow Shape Cabinet Handle - Available In Four Lengths - Electro Plated Brass

Catalogue Number:

30297

Product Name Price Qty

30297.1 - Classic Bow Shape Cabinet Handle - Brass Plated - 96mm Bolt Centres - (115mm Overall) - Each

£6.24 £5.20

Per Each

30297.2 - Classic Bow Shape Cabinet Handle - Brass Plated - 128mm Bolt Centres - (153mm Overall) - Each

£5.59 £4.66

Per Each

30297.3 - Classic Bow Shape Cabinet Handle - Brass Plated - 160mm Bolt Centres - (190mm Overall) - Each

£9.91 £8.26

Per Each

30297.7 - Classic Bow Shape Cabinet Handle - Brass Plated - 288mm Bolt Centres - (320mm Overall) - Each

£20.52 £17.10

Per Each

Enquire Now

Simple classic design is ideal for use on modern or traditional units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Diagram-Showing Dimensions Of A Bow Shape Cabinet Pull Handle

Item Code	Bolt centers (A)	Overall Length (B)	Projection (C)	Diameter (D)
30297.1	96mm	115mm	25mm	10mm
30297.2	128mm	153mm	28mm	10mm
30297.3	160mm	190mm	33mm	10mm
30297.7	288mm	320mm	41mm	10mm

Electro plated brass finish - this item is not made from real brass but has been electro plated to produce a gold / brass like colour.

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.
Comes supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors.
For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below.)

Suitable for internal use.
For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below.)
Unit Of Sale
This cabinet handle is sold individually - (Each)
