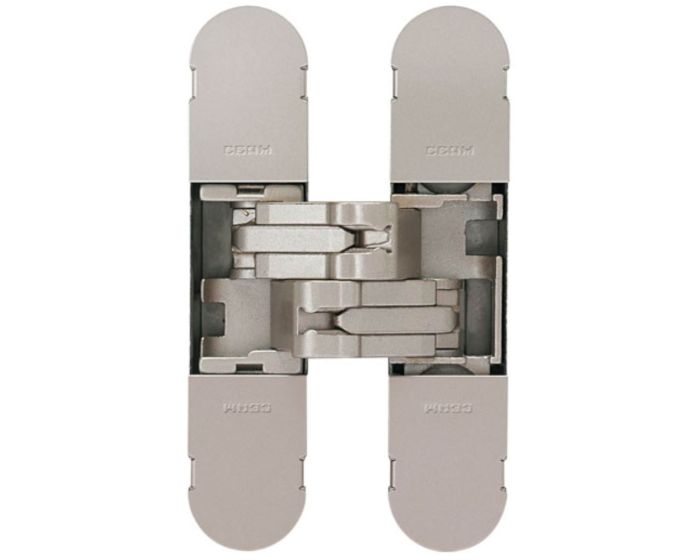

Concealed Adjustable Hinge For Invisible Doors - 100mm x 22mm - Satin Nickel
Catalogue Number:
41134
- Satin nickel concealed hinge.
- Ideal for use with flush doors, where an invisible or hidden door look is required.
- Cover caps hide the adjustment and fixing screws for an a minimalist look.
- Totally recessed making the gap between door and frame very small.
- Easy to install and maintain
- 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
- Opening angle up to 180 (when used with architrave free door frames).
- Max door weight with 2 x hinges fitted - 25kg
- Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) - 30kg
- Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 40kg
Finish
- Satin nickel.
Dimensions
- 100mm height x 22mm width x 18mm depth.
- 3D Adjustable
- +/- 3mm Side
- +/- 3mm Height
- +/- 1.5mm Compression
Installation & Adjustment Videos
| Item | 41134 |
|---|---|
| Item Code | 41134 |
| Finish | Satin Nickel |
| Dimensions | 100mm x 22mm |
| Sold Per | Each - (1 Hinge) |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
