Concealed Adjustable Hinge For Invisible Doors - Suitable For 18mm Doors - 76mm x 14mm - Polished Brass Plated

Skip to the end of the images gallery

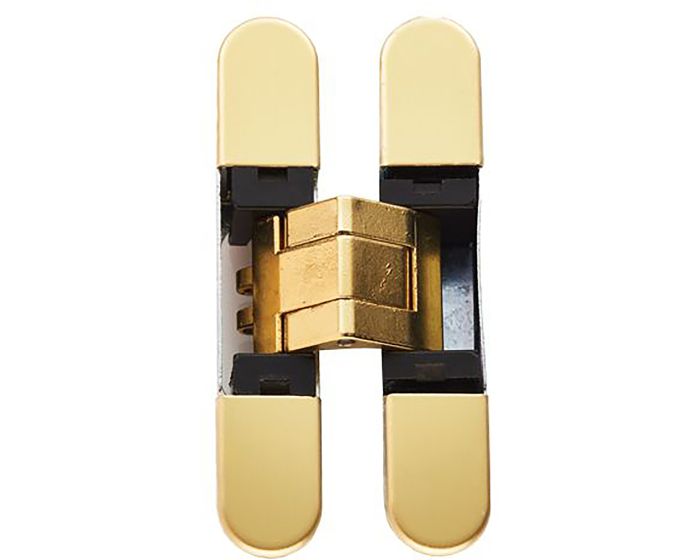

main product photo

Skip to the beginning of the images gallery

Concealed Adjustable Hinge For Invisible Doors - Suitable For 18mm Doors - 76mm x 14mm - Polished Brass Plated

Catalogue Number:

50344

Full Description

Product Name Price Qty

50344.1 - Concealed Adjustable Hinge For Invisible Doors - Suitable For 18mm Doors - 76mm x 14mm - Polished Brass Plated - Each - (1 Hinge)

£30.36 £25.30

Per Each

76mm x 14mm adjustable concealed door hinge

Maximum door thickness 18mm.

Ideal for use with flush doors, where an invisible or hidden cupboard door look is required.

Cover caps hide the adjustment and fixing screws for an a minimalist look.

Totally recessed making the gap between door and frame very small.

Easy to install and maintain

3D adjustable design (door can be adjusted vertically, horizontally and laterally).
Opening angle up to 180 (when used with architrave free door frames).

Weight Limits

Max door weight with 2 x hinges fitted - 12kg
Max door weight with 3 x hinges fitted - 16kg
Max door weight with 4 x hinges fitted - 21kg

Finish

Polished Brass Plate

Dimensions

76mm height x 14mm width x 15mm depth.

Concealed-Adjustable-Hinge-For-Invisible-Doors-Suitable-For-18mm-Doors-76mm-x-14mm-Diagram

3D Adjustable
+/- 2.5mm Side
+/- 2.5mm Height
+/- 1.5mm Compression

Installation & Adjustment Videos

Download PDF Data Sheet

More Information
Item	50344
Item Code	50344
Finish	Polished Brass Plated
Dimensions	76mm x 14mm
Sold Per	Each
Availability	Non stock product - Please allow 2-4 days for delivery

Non stock product - Please allow 2-4 days for delivery
