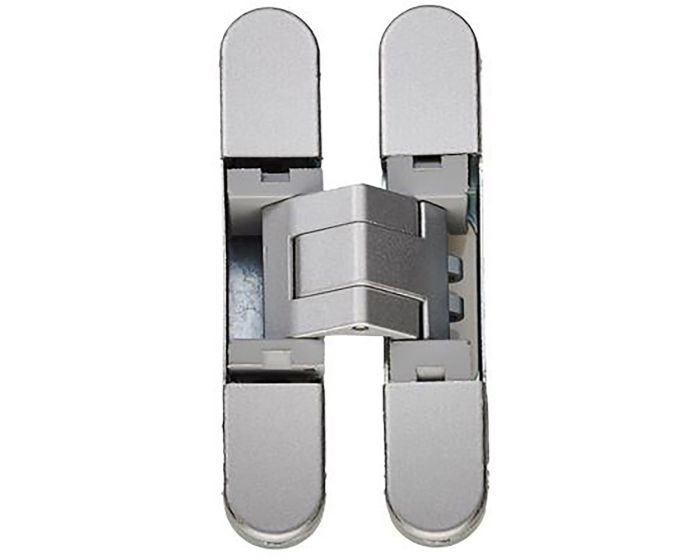

Concealed Adjustable Hinge For Invisible Doors - Suitable For 18mm Doors - 76mm x 14mm - Silver Finish
Catalogue Number:
50341
- 76mm x 14mm adjustable concealed door hinge
- Maximum door thickness 18mm.
- Ideal for use with flush doors, where an invisible or hidden cupboard door look is required.
- Cover caps hide the adjustment and fixing screws for an a minimalist look.
- Totally recessed making the gap between door and frame very small.
- Easy to install and maintain
- 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
- Opening angle up to 180 (when used with architrave free door frames).
Weight Limits
- Max door weight with 2 x hinges fitted - 12kg
- Max door weight with 3 x hinges fitted - 16kg
- Max door weight with 4 x hinges fitted - 21kg
Finish
- Silver Finish
Dimensions
- 76mm height x 14mm width x 15mm depth.
- 3D Adjustable
- +/- 2.5mm Side
- +/- 2.5mm Height
- +/- 1.5mm Compression
Installation & Adjustment Videos
| Item | 50341 |
|---|---|
| Item Code | 50341 |
| Finish | Silver Finish |
| Dimensions | 76mm x 14mm |
| Sold Per | Each |
| Availability | Non stock product - Please allow 2-4 days for delivery |
Non stock product - Please allow 2-4 days for delivery
-
