Concealed SOSS Style Hinges - 60.4mm x 12.7mm - Satin Chrome

Skip to the end of the images gallery

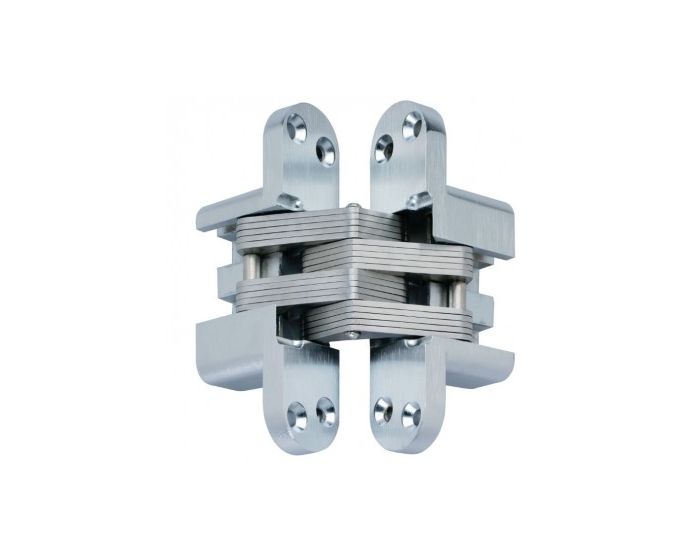

main product photo

Skip to the beginning of the images gallery

Concealed SOSS Style Hinges - 60.4mm x 12.7mm - Satin Chrome

Catalogue Number:

31517

Full Description

Product Name Price Qty

31517.1 - Concealed SOSS Style Hinge - Satin Chrome - 60.4mm x 12.7mm - Each - (Sold Per Hinge)

£11.64 £9.70

Per Each

Concealed SOSS style hinges
Size - 60.4mm x 12.7mm
For door thickness 19mm - 26 mm
Opening angle 180 degree one way
Zinc alloy hinge body and links
Satin chrome plated finish
Max door weight (per 3 hinges) - 14kg
Complete with fixing Screws
PLEASE NOTE THE SOSS STYLE CONCEALED HINGES ARE SOLD INDIVIDUALLY - (EACH HINGE)

Dimensions

Item Code	Height (H)	Leaf Width (W)	To Suit Door Thickness (DT)	Max Door Weight- (Per 3 Hinges)	Distance To Door Edge (X)	Plate Thickness (A)	Mortice Depth (B)	Mortice Height (C)
31517.1	60.4mm	12.7mm	19mm - 26mm	14kg	3.2mm	5.3mm	18.2mm	29.9mm

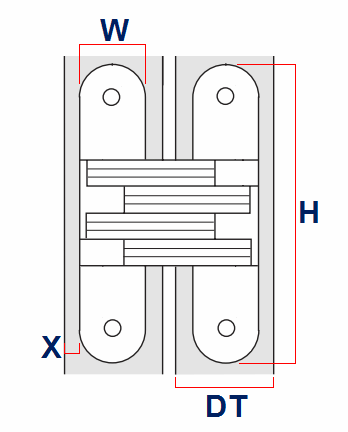

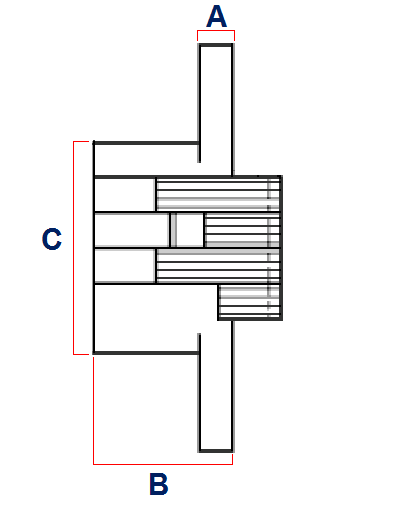

Dimensions of the SOSS style concealed hinge

Download PDF Data Sheet

More Information
Item	31517
Item Code	31517
Finish	Satin Chrome
Dimensions	60.4mm x 12.7mm
Sold Per	Each
Availability	Stock product - please allow 1-3 days for delivery

Stock product - please allow 1-3 days for delivery
