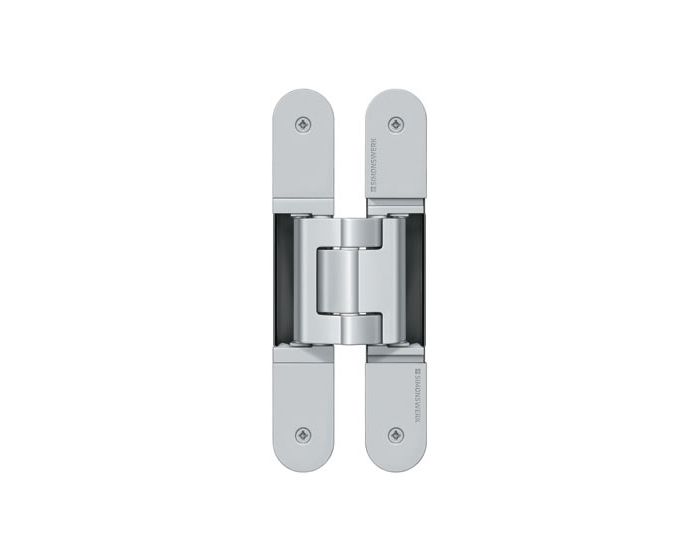

main product photo

Concealed Tectus Hinges - 200mm x 32mm

Catalogue Number:
31171
Full Description
Product Name Price Qty
31171.1 - Tectus Concealed Hinge - 200mm x 32mm - EB Finish - Electro Brass - Each - (1 Hinge)
£283.97 £236.64

Per Each
31171.2 - Tectus Concealed Hinge - 200mm x 32mm - F1 Finish - Satin Chrome - Each - (1 Hinge)
£174.28 £145.23

Per Each
31171.3 - Tectus Concealed Hinge - 200mm x 32mm - F2 Finish - Matt Nickel - Each - (1 Hinge)
£174.28 £145.23

Per Each
31171.4 - Tectus Concealed Hinge - 200mm x 32mm - Polished Nickel Finish - Polished Nickel - Each - (1 Hinge)
£283.97 £236.64

Per Each
31171.5 - Tectus Concealed Hinge - 200mm x 32mm - SSE Finish - Stainless Steel Effect - Each - (1 Hinge)
£218.83 £182.36

Per Each
Add to Mood Board
Enquire Now

• Size 200 x 32mm
• Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
• Opening angle up to 180 and contains maintenance free bearings

• Max door weight 120kg
• 3D Adjustable
+/- 3mm Side
+/- 3mm Height
+/- 1mm Compression


  • CE rated Yes
  • Duty Heavy
  • Length 200.00 m
  • Max Weight 120.00 kg
  • Option 30 min fire rated
  • Size 200 x 32
  • Type Hinge

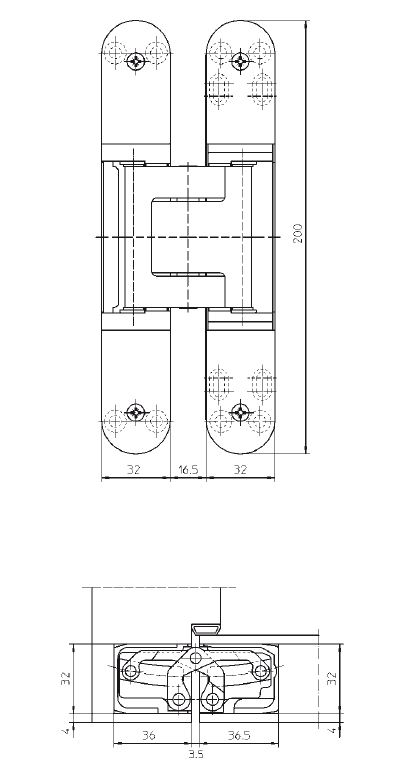

TE5403D


Download PDF Data Sheet
More Information
Item 31171
Item Code 31171
Finish -
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
