Concealed Tectus Hinges - 240mm x 32mm - For Doors With Cladding Up To 8mm Thick

Catalogue Number:

31174

Product Name Price Qty

31174.1 - Tectus Concealed Hinge - 240mm x 32mm - EB Finish - Electro Brass - Each - (1 Hinge)

£398.18 £331.82

Per Each

31174.2 - Tectus Concealed Hinge - 240mm x 32mm - F1 Finish - Satin Chrome - Each - (1 Hinge)

£250.19 £208.49

Per Each

31174.3 - Tectus Concealed Hinge - 240mm x 32mm - F2 Finish - Matt Nickel - Each - (1 Hinge)

£250.19 £208.49

Per Each

31174.4 - Tectus Concealed Hinge - 240mm x 32mm - Polished Nickel Finish - Polished Nickel - Each - (1 Hinge)

£398.18 £331.82

Per Each

31174.5 - Tectus Concealed Hinge - 240mm x 32mm - SSE Finish - Stainless Steel Effect - Each - (1 Hinge)

£310.21 £258.51

Per Each

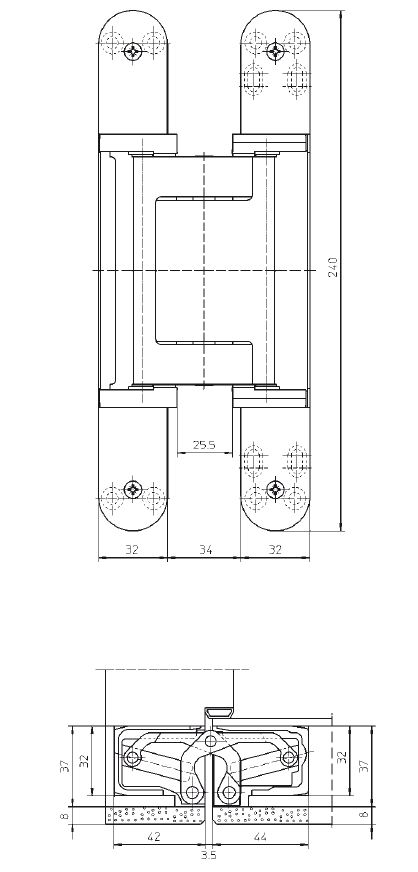

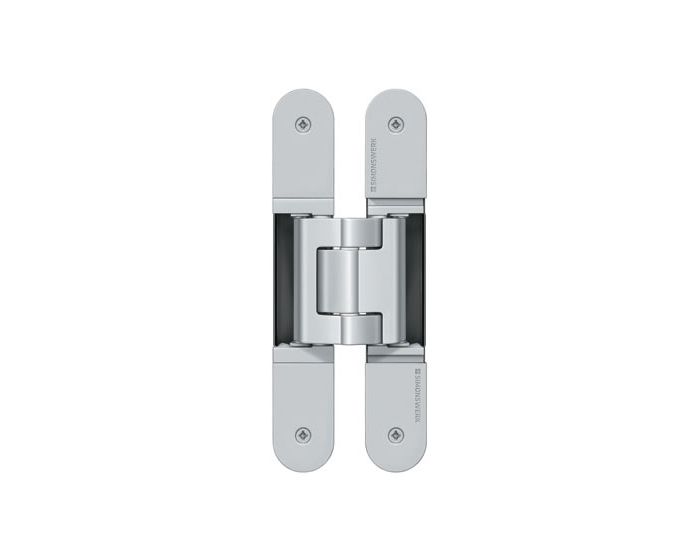

TECTUS TE 640 3D A8 hinge for doors with claddings of up to 8 mm.
Completely concealed for unrebated, heavy-duty doors with timber, steel and aluminium frames.
UL-certified,
Load capacity 160 kg, opening angle up to 180°,
Overall length 240 mm,
Maintenance-free slide bearings,
3D adjustable side +/- 3 mm, height +/- 3 mm, compression +/- 1 mm.
Size - 240mm x 32mm
SOLD PER HINGE - (EACH)

TE6403DA8
