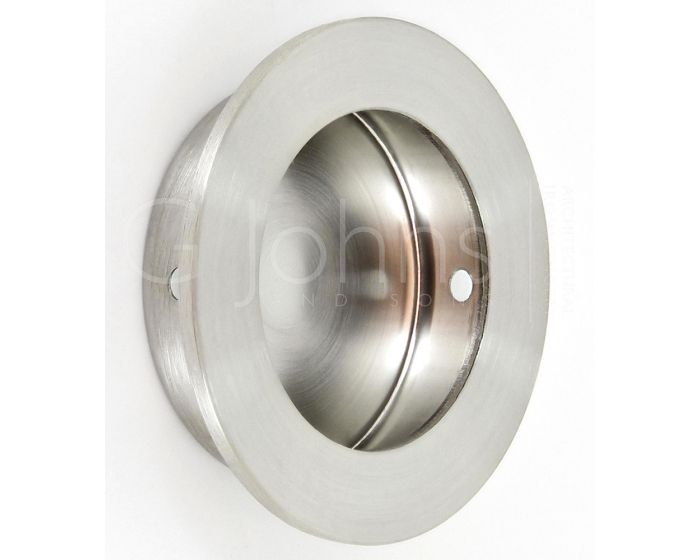

Suitable for use on full height sliding doors, wardrobe doors and cupboard doors.
Sleek minimal look thanks to discreet fixings (this item is fixed via wood screws from inside the recess).
Made from stainless steel this item is a satin (brushed) finish.
Available in two sizes - 20657.1 - 48mm diameter or 20657.2 - 78mm diameter.
This item has to be morticed (cut) into the door to allow it to sit fit flush.
Test for use on FD30 timber fire doors (please check test evidence of your fire door for compatibility).
Size Details
Item Code
Diameter (A)
Opening Diameter (B)
Recess Diameter (C)
Recess Depth (D)
Backplate Thickness
20657.1
48mm
32mm
40mm
11mm
2mm
20657.2
78mm
50mm
60mm
14mm
2mm
Base Material
Made from stainless steel.
Finish Details
Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item. For more information and how to care for this finish please see our guide to product finishes.
Alternative Finishes Available
Polished stainless steel - (Shiny finish).
Fixings
This handle is fitted via 2 x wood screws inside the recess of the handle.
Screws are supplied with this item.
Usage
Suitable for internal or external use.
To fit this handle completely flush a minimum door thickness of 18mm is required.
