Cranked Flush Hinge - 50mm - Zinc Plated

Skip to the end of the images gallery

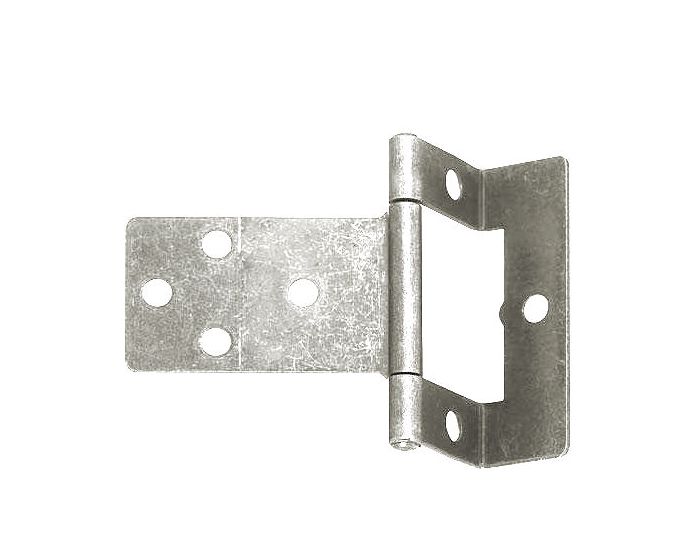

main product photo

Skip to the beginning of the images gallery

Cranked Flush Hinge - 50mm - Zinc Plated

Catalogue Number:

20280

Full Description

Product Name Price Qty

20280.1 - Cranked Flush Hinge - Zinc Plated - 50mm - Each

£1.08 £0.90

Per Each

Cranked Flush hinges ideal for medium weight cabinet and cupboard doors

Designed for heavier weight applications then regular flush hinges

Flush fit no need to mortice in to door or carcass

Finish

Bright zinc plated

Dimensions

20281.1 - (50mm x 66mm)

	20281.1	Dimension On Diagram
Height (H)	50mm	A
Overall Width (W)	66mm	B
Leaf Width C	16mm	C
Leaf Width D		D
Crank		E
Thickness	1.2mm	N/A

Important Info Before You Buy

Suitable for wooden doors

Only suitable for doors that inset the cabinet carcass - (see below diagram)

Diagram showing doors that inset the cabinet carcass

Normally for 15mm - 19mm door thickness

The cranked flush hinge is a heavier duty version of the regular flush hinge

Base material is steel with an electro brass plated finish

Flush hinges are "easy fit" non mortice - No chiselling required just screw straight on to door and carcass

Leaf "D" folds into leaf "C" to allow the hinge to close together "flush"

Sold individually - (price per hinge).

Download PDF Data Sheet

More Information
Item	20280
Item Code	20280
Finish	Zinc Plated
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
