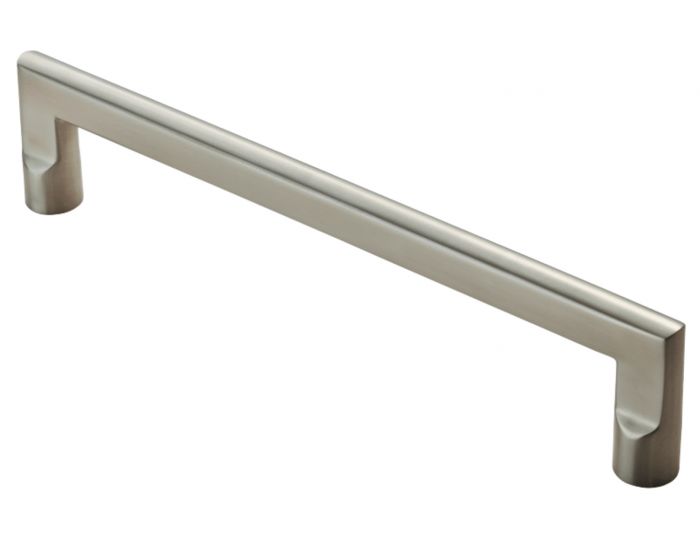

Designer Mitred Shape Bolt Through Fixing Pull Handle - Grade 304 Satin Stainless Steel

Catalogue Number:
43488
Full Description Related Products
Product Name Price Qty
43488.2 - Designer Mitred Shape - Bolt Through Fixing Pull Handle - 325mm Length - (300mm Bolt Centres) - Satin Stainless Steel - Each
£42.72 £35.60

Per Each
43488.3 - Designer Mitred Shape - Bolt Through Fixing Pull Handle - 475mm Length - (450mm Bolt Centres) - Satin Stainless Steel - Each
£48.84 £40.70

Per Each
43488.4 - Designer Mitred Shape - Bolt Through Fixing Pull Handle - 625mm Length - (600mm Bolt Centres) - Satin Stainless Steel - Each
£59.45 £49.54

Per Each
Out of stock
Enquire Now
  • Architectural quality satin stainless steel pull handle
  • Mitred design with a curved rectangular shape
  • Made from grade 304 stainless steel ideal making it ideal for internal or external doors
  • Suitable for use on half hour FD30 and one hour FD60 fire doors tested and passed to BS EN 1634-1 2000
  • Bolt through the door design see below diagram
Diagram showing how a bolt through pull handle fits

Above diagram shows how a bolt through pull handle is fitted to a wooden door



Alternative Fixing Options:

  • Bolt through fixing with cover caps (where no finger plate is wanted on the reverse side) - see related product - 43478.
  • Back to back pair (kit for fitting pull handles to both sides of the door) - see related product - 43480.
  • Face fixing with roses (kit for situations where the handle cannot be fixed from the rear) - see related product - 43484.



Finish

  • Satin stainless steel



Dimensions

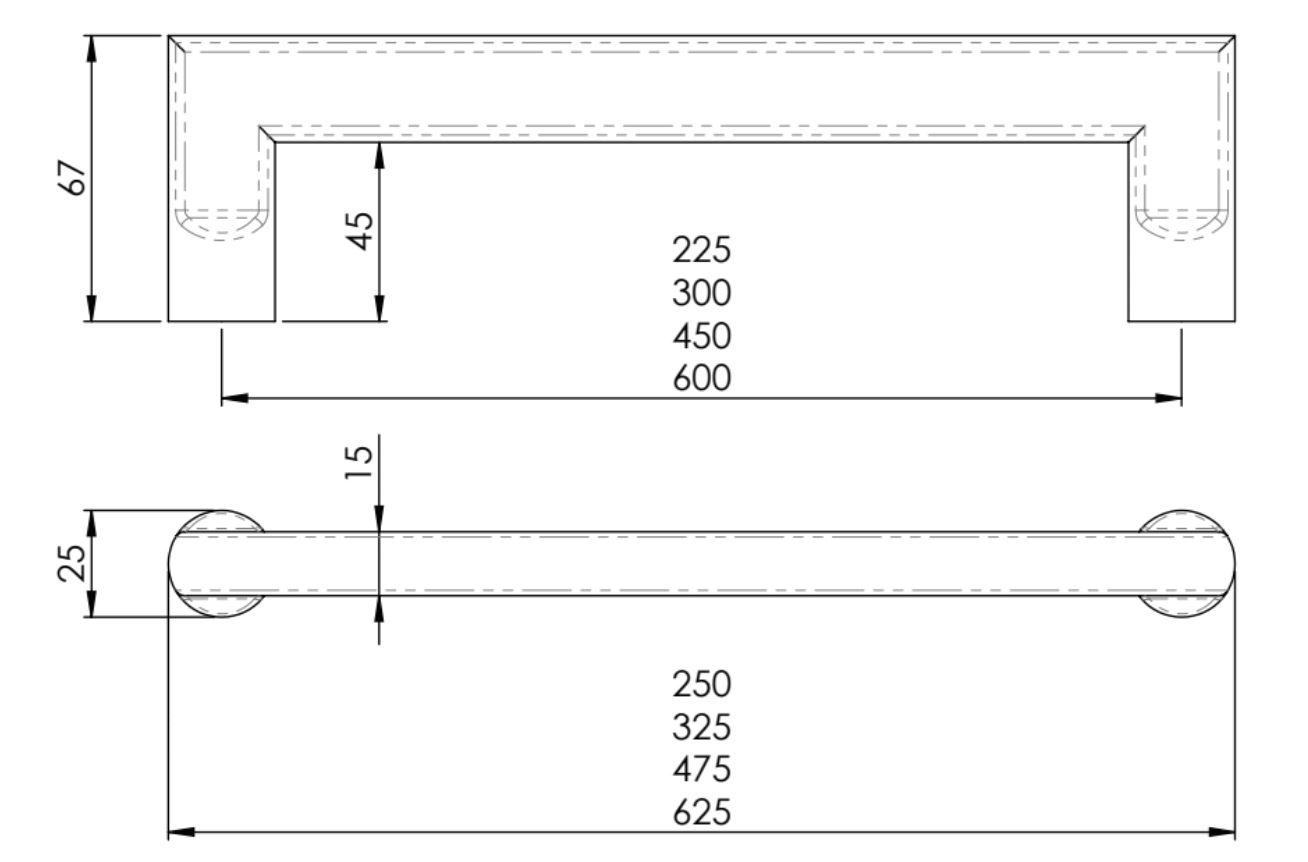

Diagram showing dimensions of the designer mitred shape pull handle
Item Overall Length Bolt centers Diameter Projection
43488.2 325mm 300mm 25mm 67mm
43488.3 475mm 450mm 25mm 67mm
43488.4 625mm 600mm 25mm 67mm



Important Info Before You Buy

  • Suitable for wooden doors
  • Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings
  • This pull handle is sold individually - (each).
More Information
Item 43488
Item Code 43488
Finish Satin Stainless Steel
Dimensions Available In 3 Lengths - 325mm, 475mm or 625mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
