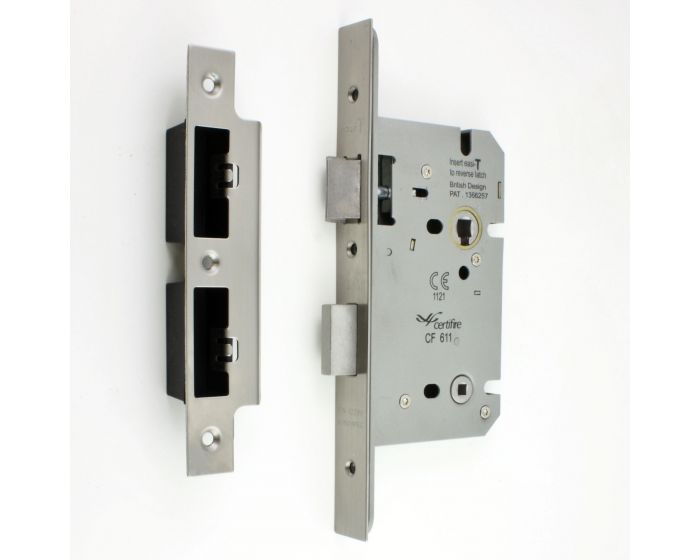

Architectural Quality DIN Style Bathroom Mortice Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - Satin Stainless Steel

• 30906.1 -  DIN standard bathroom mortice lock.

• 5mm follower for use with standard UK bathroom snib turn & release systems

• Brushed satin stainless steel finish.

• Case size 150mm x 85mm.

• 60mm backset with 78mm centers between the lever spindle hole and the bathroom spindle hole.

• Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.

• For use on bathroom and WC doors that require lever door handles and need to be locked via a snib turn & release system.

• Comes supplied with satin (brushed) stainless steel forend and frame mounted strike plate.

Operation

• Latch is withdrawn via a lever handle from either side of the door. (handles sold separately).

• Deadbolt is thrown and withdrawn (locked & unlocked) via a bathroom snib turn & emergency release set (sold separately).

• Suitable for use on inward or outward opening doors.

Features

• Heavy duty lock case and stainless steel striker plate for the door frame.

• Solid stainless steel latch and deadbolt.

• Dual latch springing - spring strength can be adjusted on site to suit sprung or un-sprung lever furniture.

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.

• Solid investment cast spindle followers.

• 10 year mechanical guarantee as standard.

• Patented Easi-T latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• Satin stainless steel - (brushed finish).

Alternative Finishes Available

• Polished stainless steel

• PVD Brass finish

Dimensions

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F-BG20.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forened and strike plates. Please contact us for lead times and prices.

• Intumescent lock case liners to suit the E*S DIN standard lock range are available. Please see our intumescent fire rated products category.

Extra Items Required For This Lock

• Lever door handles - (half set required for the inside of the door).

• A turn & emergency release set - (used to lock and unlock the door).

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
