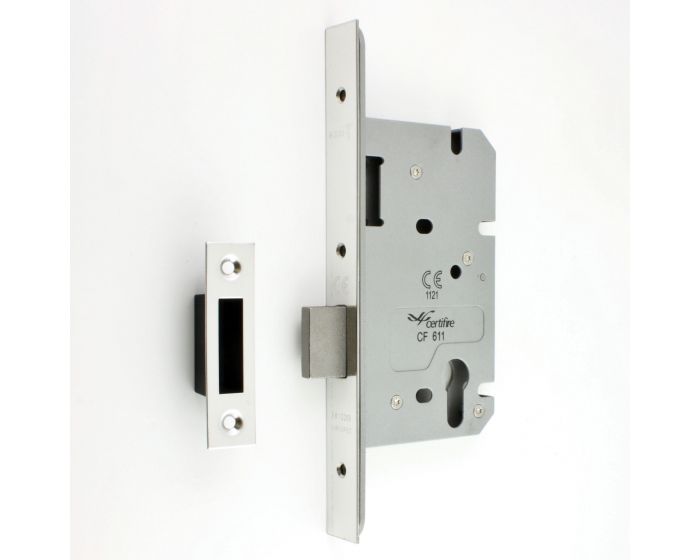

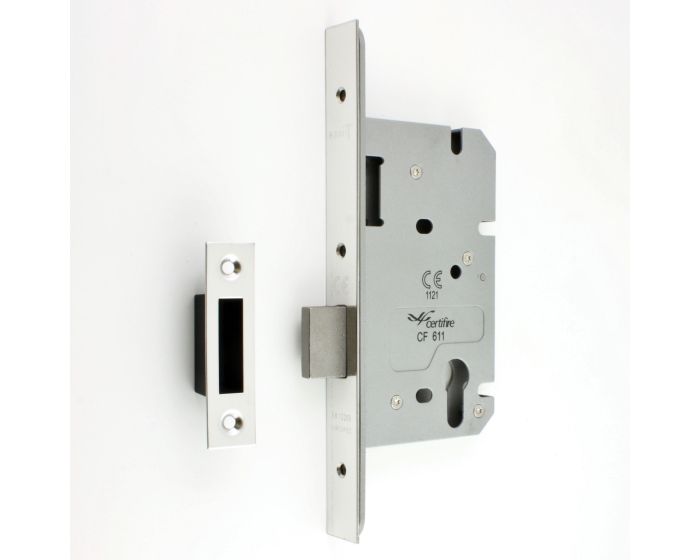

Architectural Quality DIN Style Euro Profile Mortice Deadlock - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

• 30894.1 - Euro profile DIN standard mortice dead lock.

• Polished stainless steel - (shiny finish).

• Case size 150mm x 85mm.

• 60mm backset

• Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.

• For use on doors that need to be locked only and do not require a pair of lever door handles.

• Must be used in conjunction with a Euro profile cylinder (sold separately).

• Comes supplied with polished (shiny) stainless steel forend and frame mounted strike plate.

Operation

• Dead lock operated via a Euro profile cylinder (sold separately).

• One single turn of the key or thumbturn on the Euro cylinder will completely throw the 20mm dead bolt.

Features

• Heavy duty lock case and stainless steel striker plate for the door frame.

• Solid stainless steel deadbolt.

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.

• 10 year mechanical guarantee as standard.

• 20mm bolt throw with a single turn of a key.

• Reversible and adjustable strike plate.

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• Polished stainless steel - (shiny finish).

Alternative Finishes Available

• Satin stainless steel

• PVD Brass finish

Dimensions

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3M810F3BA00.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forened and strike plates. Please contact us for lead times and prices.

• Intumescent lock case liners to suit the E*S DIN standard lock range are available. Please see our intumescent fire rated products category.

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
