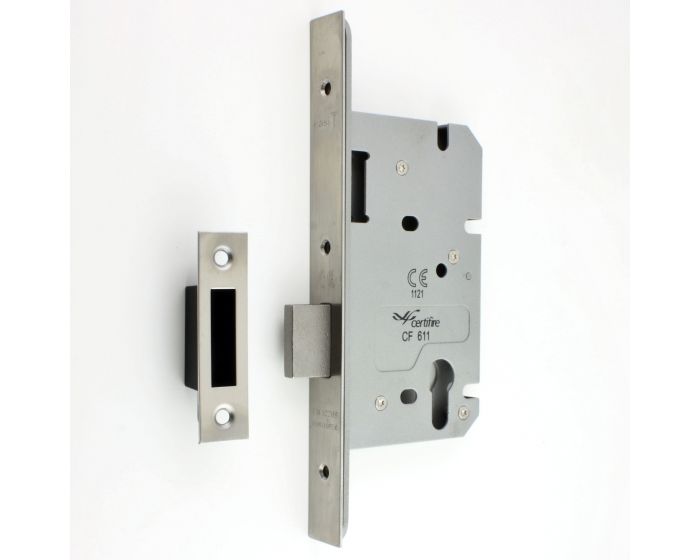

Architectural Quality DIN Style Euro Profile Mortice Deadlock - CE / UKCA Marked - Fire Rated - Certifire Approved - Satin Stainless Steel

Catalogue Number:
30894
Full Description Related Products
Product Name Price Qty
30894.1 - Architectural Quality DIN Style Euro Profile Mortice Deadlock - CE / UKCA Marked - Fire Rated - Certifire Approved - 85mm Case Depth (60mm Backset) - Satin Stainless Steel
£19.55 £16.29

Per Each
Enquire Now
  • 30894.1 - DIN standard mortice dead lock.
  • Brushed satin stainless steel finish.
  • Case size 150mm x 85mm.
  • 60mm backset
  • Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.
  • For use on doors that need to be locked only and do not require a pair of lever door handles.
  • Must be used in conjunction with a Euro profile cylinder (sold separately).
  • Comes supplied with satin (brushed) stainless steel forend and frame mounted strike plate.

Operation

  • Dead lock operated via a Euro profile cylinder (sold separately).
  • One single turn of the key or thumbturn on the Euro cylinder will completely throw the 20mm dead bolt.

Features

  • Heavy duty lock case and stainless steel striker plate for the door frame.
  • Solid stainless steel deadbolt.
  • Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.
  • 10 year mechanical guarantee as standard.
  • 20mm bolt throw with a single turn of a key.
  • Reversible and adjustable strike plate.
  • Complete with black plastic frame box keep to sit behind the strike plate.

Finish

  • Satin stainless steel - (brushed finish).



Alternative Finishes Available

  • Polished stainless steel
  • PVD Brass finish



Dimensions

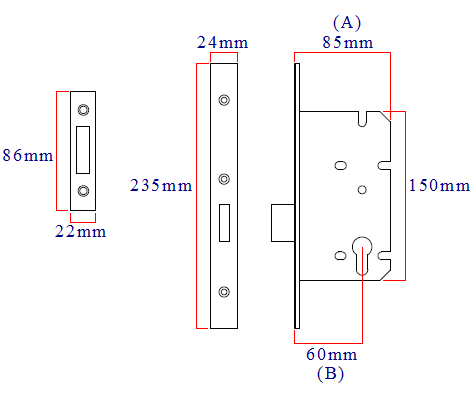

Diagram showing dimensions of the Eurospec DIN standard euro profile mortice deadlock DLS0060EPSSS


Item CodeLock Case Depth (A)Backset To Keyhole (B)Case Height
30894.1 85mm 60mm 150mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3M810F3BA00.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This lock is also available to order with radius (rounded shape) forened and strike plates. Please contact us for lead times and prices.
  • Intumescent lock case liners to suit the E*S DIN standard lock range are available. Please see our intumescent fire rated products category.


Rebate Kit For Double Rebated Doors

  • 40835.1 - 13mm satin stainless steel rebate kit for use with DIN lock.


Unit Of Sale

  • Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
More Information
Item 30894
Item Code 30894
Finish Satin Stainless Steel
Dimensions 85mm Case Depth (60mm Backset)
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
