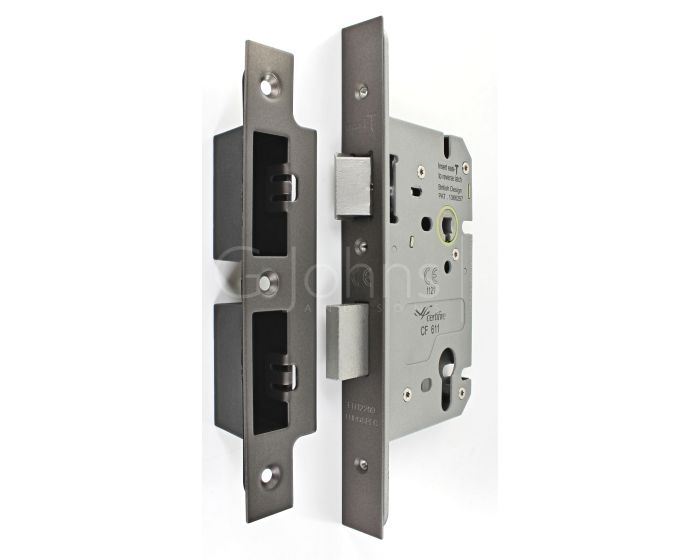

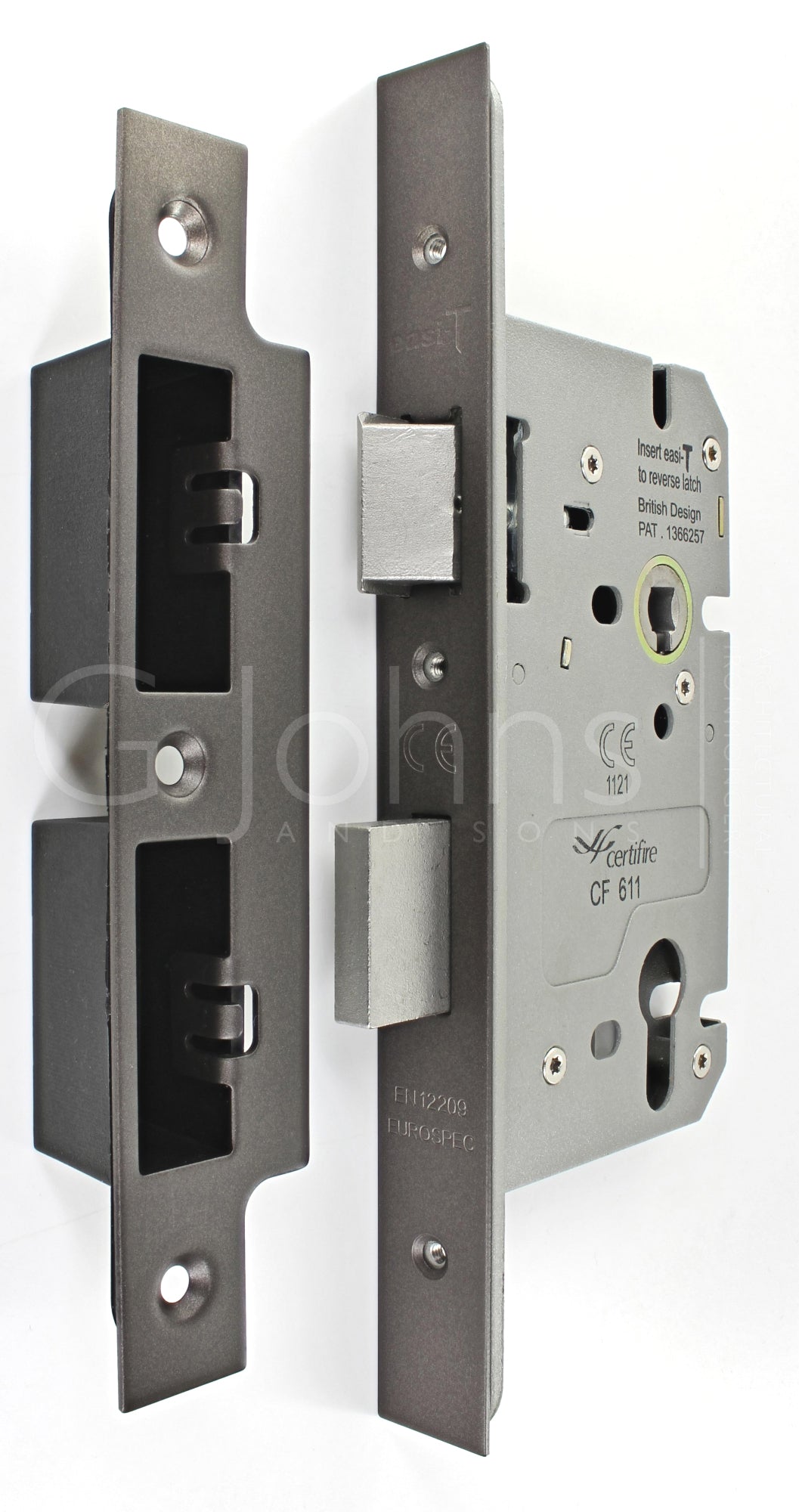

Architectural Quality DIN Style Euro Profile Sash Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt Bronze (Powder Coated)

• Euro profile DIN standard mortice sash lock.

• Case size 150mm x 85mm.

• 60mm backset - 72mm euro to spindle centers.

• Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings.

• For use on doors that require lever door handles and need to be locked via a euro profile cylinder.

• Must be used in conjunction with some form of door handle and a euro cylinder.

Operation

• Latch is withdrawn via a lever handle from either side of the door. (handles sold separately).

• Deadbolt is locked and un-locked via a Euro profile cylinder.

• One single turn of the key or thumb-turn on the Euro cylinder will completely throw the 20mm dead bolt.

Features

• Heavy duty lock case.

• Solid stainless steel deadbolt and latch.

• Dual latch springing - spring strength can be adjusted on site to suit sprung or un-sprung lever furniture.

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.

• Solid investment cast 8mm x 8mm spindle follower (to suit standard UK size spindles).

• 20mm bolt throw with a single turn of a key.

• 10 year mechanical guarantee as standard.

• Patented Easy turn latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• Matt bronze

Dimensions

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F3BA20.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• Intumescent lock case liners to suit the E*S DIN standard lock range are available. Please see our intumescent fire rated products category.

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and black plastic back box).
