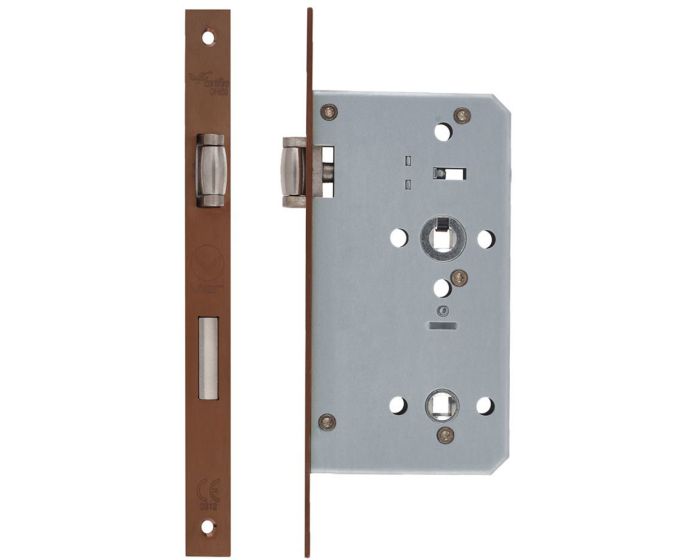

DIN Style Roller Ball Bathroom Mortice Lock - 60mm Backset - (78mm Centres) - PVD Satin Bronze

• DIN standard roller ball bathroom mortice lock

• 5mm follower for use with standard UK bathroom snib turn & release systems

• Case size 165mm x 90mm

• 60mm backset with 78mm centers between the lever spindle hole and the bathroom spindle hole

• Satisfies BS 8300 and Approved Doc M (ADM). - Suitable for use in public and commercial buildings

• For use on bathroom and WC doors that require lever door handles and need to be locked via a snib turn & release system

• Comes supplied with PVD Satin Bronze forend and frame mounted strike plate

Operation

• Latch is withdrawn via a lever handle from either side of the door (handles sold separately)

• Deadbolt is thrown and withdrawn (locked & unlocked) in two ways
• 1. Via a bathroom snib turn & emergency release set (sold separately)
• 2. Via a lifting an unsprung lever handle up and down through 90 degrees

• Suitable for use on inward or outward opening doors

Features

• Heavy duty lock case and PVD Satin Bronze striker plate for the door frame

• Solid stainless roller ball latch and deadbolt

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers

• 10 year mechanical guarantee as standard

• Reversible and adjustable strike plate

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• PVD Satin Bronze

Dimensions

Extra Items Required For This Lock

• Lever door handles
• A turn & emergency release set - (used to lock and unlock the door)

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate and black plastic back box)
