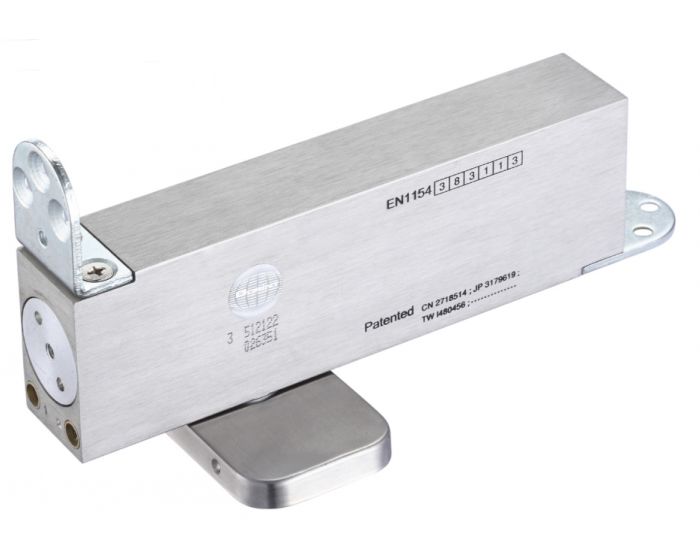

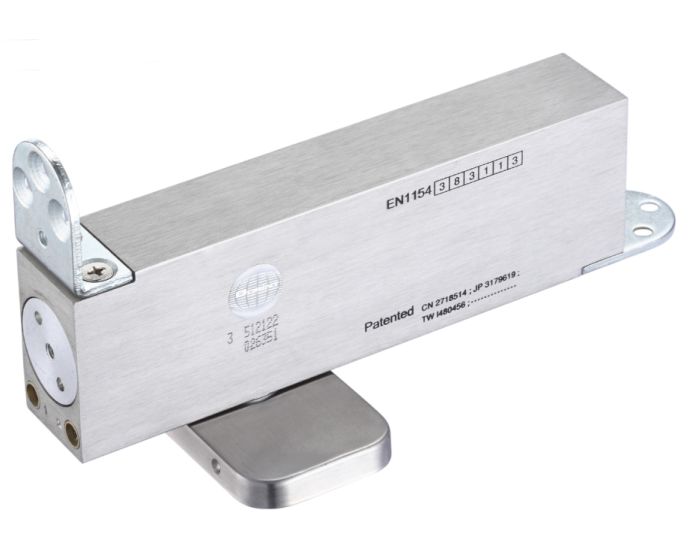

Double Action Bottom Of Door Concealed Door Closer - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel

Catalogue Number:
44318
Full Description
Product Name Price Qty
44318.1 - Double Action Bottom Of Door Concealed Door Closer - Minimum Door Thickness 40mm - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel
£229.73 £191.44

Per Set
44318.2 - Double Action Bottom Of Door Concealed Door Closer - Minimum Door Thickness 50mm - CE / UKCA Marked - Fire Rated - EN 1154 Power Size 3 - Satin Stainless Steel
£249.98 £208.32

Per Set
Add to Mood Board
Enquire Now
  • Double action pivot set - allows doors to swing in both directions.
  • Tested for use on FD30 / FD60 fire doors.

Dimensions

Item Code Minimum Door Thickness Max Door Weight Max Angle Of Opening Adjustable Closing Speed Adjustable Braking Speed
44318.1 40mm 60kg 150º  150º- 10º 10º – 0º
443182 50mm 100kg 150º 150º- 10º 10º – 0º



Base Materials

  • Aluminium
  • Stainless Steel
  • Steel

Finish

  • Satin stainless steel

Unit Of Sale

  • Sold per set - to hang one double action door.
Download PDF Data Sheet
More Information
Item 44318
Item Code 44318
Finish Satin Stainless Steel
Fire Rated FD30 - Fire Rated
Sold Per Set
Availability Non stock product - please allow 3-7 days for delivery
Double Action Bottom Of Door Concealed Door Closer - FD60 Fire Test Report (2.93 MB)
CE Performance Data & Cert (1.09 MB)
Fire Test Report (2.73 MB)
ISO90001 Report (115.36 kB)
Concealed Double Action Closer Specification Sheet (763.56 kB)
Concealed Double Action Closer Fitting Instructions (1.24 MB)
Concealed Double Action Closer Declaration Of Performance DOP (582.00 kB)
Non stock product - please allow 3-7 days for delivery
