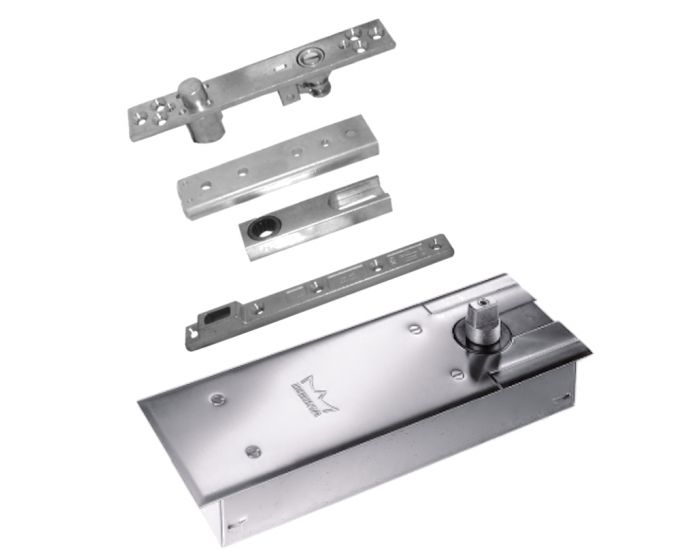

Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4 - Supplied With Cover Plate & Double Action Accessories

Catalogue Number:
43536
  • Double action floor spring door closer with mechanical hold open at 90 degrees..
  • Floor mounted closer designed for doors that need to swing in two directions.
  • Features individual controls for door speed, latching action and backcheck.
  • Can be adjusted to suit door widths up 1100mm wide.
  • Max Door Width / Weight – 1100mm / 120Kg.
  • Power adjustable by valve.
  • Due to the built-in mechanical hold open function this door closer cannot be used of fire doors.
  • Satin stainless steel & satin brass cover plate options.
  • Complete kit includes; body, double action accessories and cover plate.
Full Description
Product Name Price Qty
43536.1 - Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4 - Supplied With Cover Plate & Accessories - Satin Stainless Steel
£395.86 £329.88

Per Each
43536.2 - Double Action Floor Spring Door Closer - With Mechanical Hold Open At 90 Degrees - Adjustable Power Size 1-4 - Supplied With Cover Plate & Accessories - Satin Brass Unlacquered
£414.19 £345.16

Per Each
Add to Mood Board
Enquire Now

Floor Plate Finish Options:

  • Satin stainless steel.
  • Satin brass.



Double Action:

  • Allows the door to swing through 175 degrees (allows the door to swing in both directions).



Diagram showing a double action floor spring fitting position



Power Adjustment Via Spring:

  • Separate power adjustment, by means of an allen key at the end of the closer body, this closer can be adjusted to suit door widths up to 110mm wide and up to 120kg in weight (EN power size 1-4)

Functions:

  • 1. Adjustable closing speed in the range 175° – 15°.
  • 2. Adjustable closing speed in the range 15° – 0°.
  • 3. Mechanical backcheck (from approx. 70°).
  • 4. Hold open function at 90 degrees. For hold open function at 105 degress please contact us.
  • 5 Adjustable spring strength (EN 1–4).

      Diagram Showing Floor Spring Speed & Latch Adjustments



      Floor Spring Dimensions:

      • Body Length - 285mm
      • Body Height - 50mm
      • Body Width - 82mm
      • Cover Length - 308mm
      • Cover Width - 105mm
      • Cover Thickness - 1.5mm

      Diagram showing the dimensions of the BTS74V Floor Spring Door Closer

      Opening Forces - BS 8300:

      The opening force (0-30 degrees) is less than 30N.

      The opening force (30-60 degrees) is less the 22.5N

      Download PDF Data Sheet
      More Information
      Item 43536
      Item Code 43536
      Finish Cover Plate Finish - Satin Stainless Steel or Satin Brass
      Dimensions Body - 240mm x 75mm x 49mm
      Sold Per Each
      Availability Non stock product - please allow 3-7 days for delivery
      Floor Spring Installation Guide (466.89 kB)
      Non stock product - please allow 3-7 days for delivery
