Double Action Pivot Set - For Double Swing Doors - Floor Mounted - 125kg - Satin Stainless Steel

Skip to the end of the images gallery

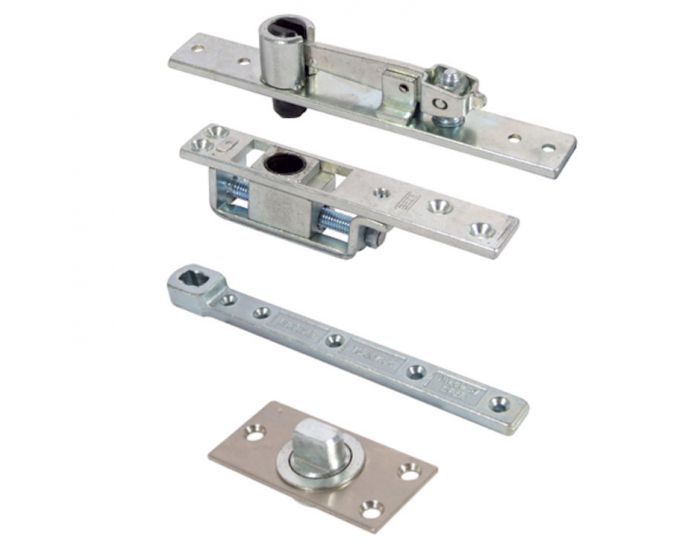

main product photo

Skip to the beginning of the images gallery

Double Action Pivot Set - For Double Swing Doors - Floor Mounted - 125kg - Satin Stainless Steel

Catalogue Number:

41053

Full Description

Product Name Price Qty

41053.1 - Double Action Pivot Set - Floor Mounted - 125kg Weight Limit - Satin Stainless Steel

£188.81 £157.34

Per Set

Double action pivot set - allows doors to swing in both directions

Bottom bracket is floor mounted and works in conjustion with a bottom strap

Height adjustment possible through top centre module fitted into the top of the door

Minimum door thickness 44 mm

Maximum door weight 125kg

Supplied with adjustable to centre bracket

Set includes bottom pivot, top centre and double action bottom door strap

Finish

Bottom pivot - satin stainless steel

Dimensions

Bottom pivot plate 90mm x 44mm

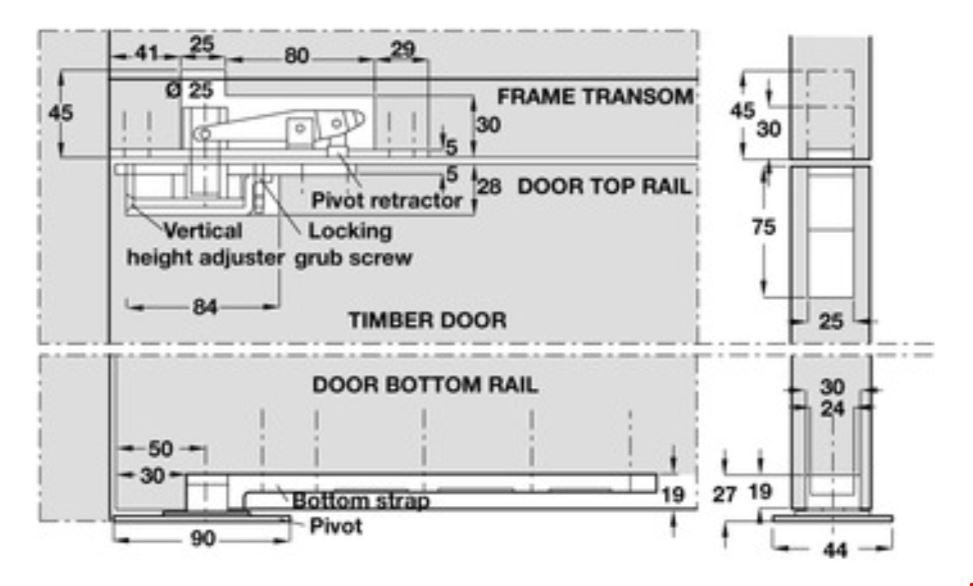

Diagram Showing Dimensions Of The Double Action Floor Mounted Pivot Set - 125kg

Unit Of Sale

Sold per set - to hang one double action door.

Download PDF Data Sheet

More Information
Item	41053
Item Code	41053
Finish	Satin Stainless Steel
Sold Per	Set
Availability	Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery
