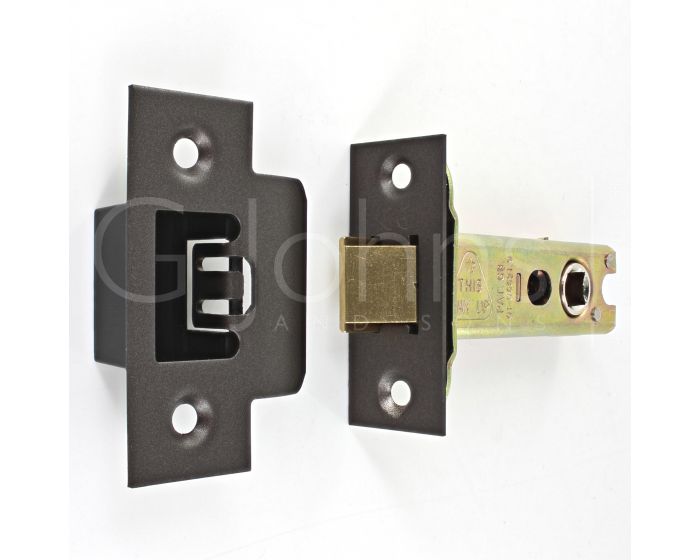

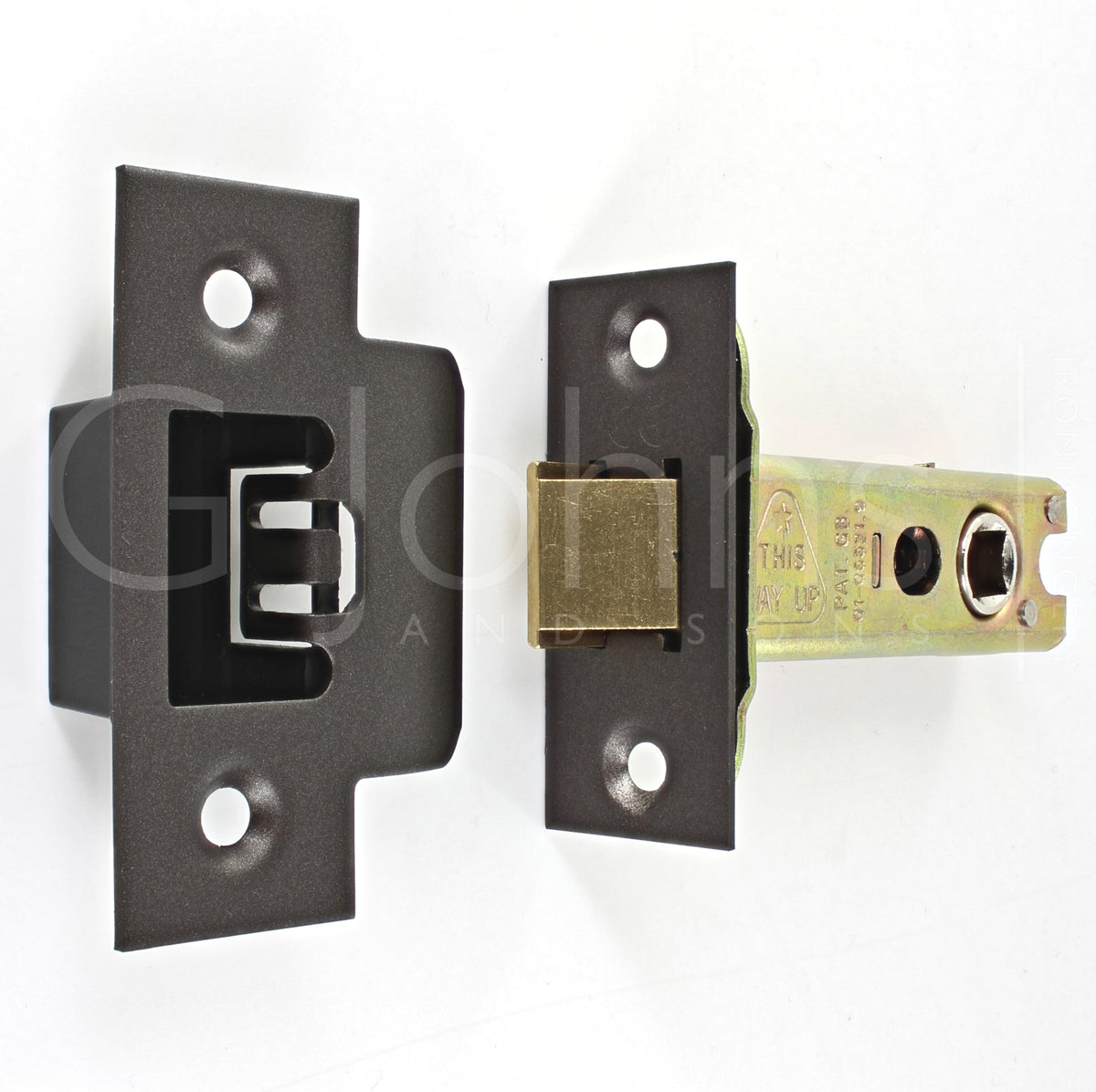

Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt Bronze (Powder Coated)

Catalogue Number:

44827

Product Name Price Qty

44827.1 - Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth - (44mm Backset) - Matt Bronze (Powder Coated)

£19.92 £16.60

Per Each

44827.2 - Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth - (57mm Backset) - Matt Bronze (Powder Coated)

£18.12 £15.10

Per Each

44827.3 - Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - 102mm Case Depth (83mm Backset) - Matt Bronze (Powder Coated)

£22.56 £18.80

Per Each

44827.4 - Architectural Quality Double Sprung Tubular Mortice Latch - CE / UKCA Marked - Fire Rated - Certifire Approved - 127mm Case Depth (108mm Backset) - Matt Bronze (Powder Coated)

£24.12 £20.10

Per Each

Enquire Now

Description

Heavy duty double sprung tubular latches.

CE Marked / UKCA Marked.

Fire tested to BS EN 1634-1 suitable for use on 30 minute and 60 minute FD30 and FD 60 fire doors.

Tested to BS EN 12209-2003 the standard for mechanical locks and latches.

Supplied with black back box for fitting behind the strike plate in the door frame.

Heavy duty latch ideal for use with door handles fitted in residential, commercial and public buildings.

Bolt through fixing holes at 38mm apart on the 76mm latch only - allows this latch to work in conjunction with bolt through round rose door handles.

This latch has a heavy weight spring making it ideal for use with sprung or un-sprung door handles.

Operation

Latch is withdrawn via a door handle from either side of the door (handles sold separately).

Features

Double sprung - heavy weight springing with lightly sprung latch bolt (allows the door to latch into place with little friction).

Solid brass guided latch.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres - (please not the 64mm latch does not have bolt through holes).

8mm x 8mm spindle follower (to suit standard UK size spindles).

Latch can be reversed on site by twisting the latch through 180 degrees.

Reversible frame mounted strike plate.

Supplied with black back box for fitting behind the strike plate in the door frame.

Suitable for use on internal doors in residential, commercial or public buildings.

Finish

Matt bronze

Dimensions

Available in four different sizes

Available in four sizes

64mm case depth (44mm backset) NOTE THIS LATCH DOES NOT HAVE BOLT HOLES

76mm case depth (57mm backset)

102mm case depth (83mm backset)

127mm case depth (108mm backset)

	44827.1	44827.2	44827.3	44827.4	Dimension On Diagram
Overall Case Depth	64mm	76mm	102mm	127mm	A
Backset (Distance To centre Of Spindle Hole)	44mm	57mm	83mm	108mm	B
Case Height	23mm	23mm	23mm	23mm	C
Forend - Height (H) x Width (W)	60mm x 25mm	60mm x 25mm	60mm x 25mm	60mm x 25mm	D
Strike Plate - Height (H) x Width (W)	65mm x 25mm	65mm x 25mm	65mm x 25mm	65mm x 25mm	E

Standards This Product Conforms To

Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - A710-B00

Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60. Intumescent latch case liners required (sold separately).

Certifire approved.

CE Marked / UKCA Marked

Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

Intumescent lock case liners to suit the DIN standard lock range are available. Please see our intumescent fire rated products category.

Unit Of Sale

Each - (1 x latch case supplied with forend and strike plate and black back box liner).

Download

Download PDF Data Sheet

Specification

More Information
Item	44827
Item Code	44827
Finish	Matt Bronze (Powder Coated)
Dimensions	64mm, 76mm, 102mm or 125mm Case Depth
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Stock product - please allow 1-3 days for delivery
