Eclisse Double Door Co-ordination Kit - For Use With Eclisse Double Door Systems

Catalogue Number:

40166

Product Name Price Qty

40166.1 - Eclisse Double Door Co-ordination Kit - For Use With Eclisse Double Door Systems

£114.00 £95.00

Per Each

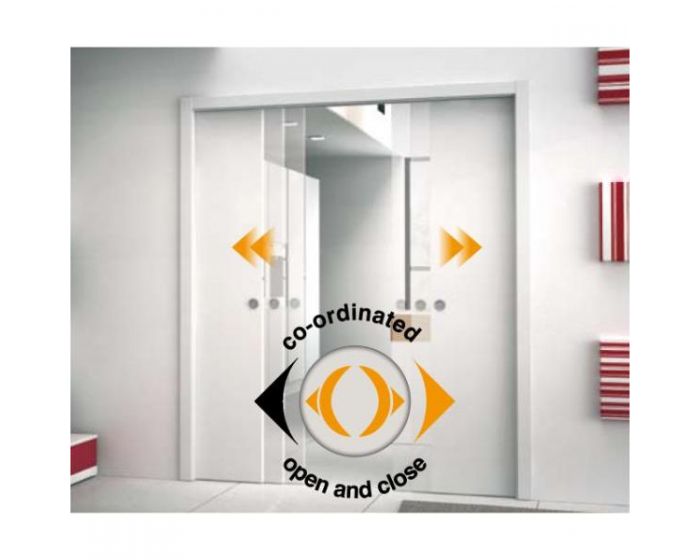

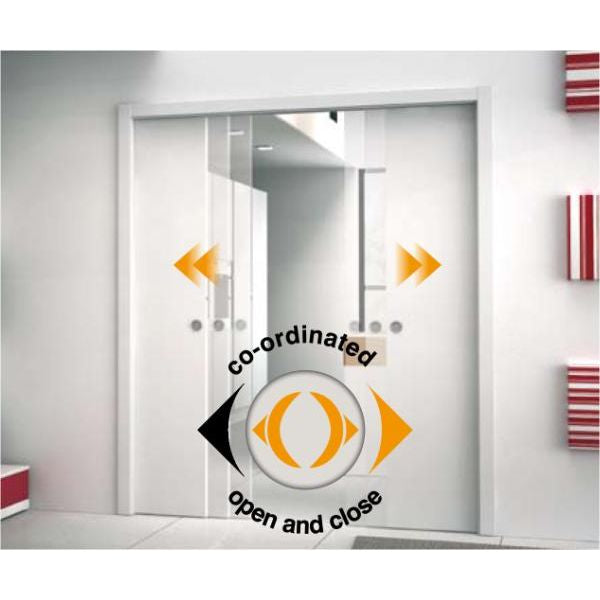

Double door co-ordinator mechanism to suit Eclisse sliding double door pocket door systems.

With this system the opening/closing of the two doors is linked so as you open or close one door, the other one opens or closes.

The system can be installed in existing counterframes because the Eclisse system has patented extractable tracks which allow you to remove them and install the coordination system.

The cable used in this system has been specially developed by Eclisse for its strength and resistance to stretch over time. It's a 132 strand, 2mm stainless cable complete with a zinc plated 1.5mm spring.

The cable is attached to the door by means of a bracket installed centrally on top of the door.

This set includes a soft closer which will slow down the doors and close them if the doors are no more than 25 kg each. Heavier doors will just be slowed down,

More Information
Item	40166
Item Code	40166
Finish	-
Dimensions	For Doors Up To 25kg In Weight
Sold Per	Each
Availability	Non stock product - sent direct from factory - please allow 1-2 working days for delivery
