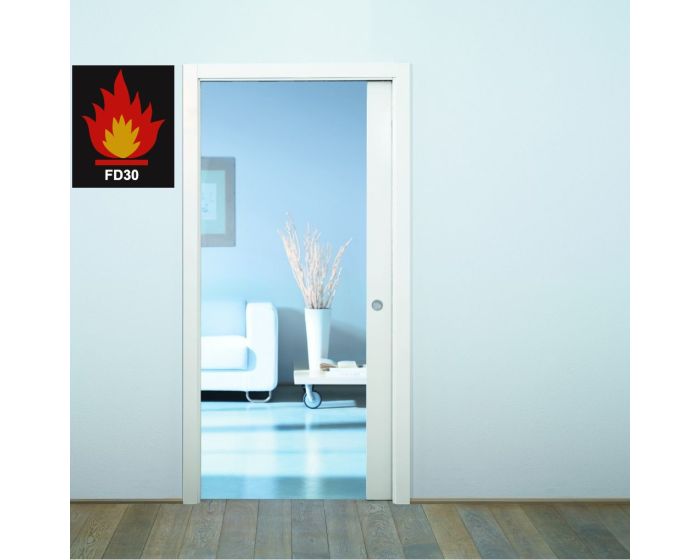

Eclisse Fire Rated Sliding Pocket Door System - Single Fire Door FD30 Kit - 100mm Finished Wall Thickness - Supplied With White Intumescent Seals

• Eclisse sliding pocket door gear system for use with FD30 rated fire doors. Fully tested and approved to BS EN 1634-12008 by Cambridge Fire Research, UKAS approved testing authority.

• Suitable for use with 30 minute (half hour) fire doors only.

• Allows an interior door to slide into a "pocket" within the wall cavity.

• Each set includes all the main components needed to install a long lasting, smooth running sliding fire door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.

• This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 100 mm.

• Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.

• Suitable for use with timber fire rated doors only - please note doors are supplied with white intumescent seals

• Unlike other pocket door systems on the market the Eclisse fire rated system comes supplied complete with timber jambs and architraves.

• Doors not included.

Accessories Available To Suit Eclisse System

• Anti-Slam / Soft close mechanism - to dampen softly close the sliding door - 43129.1 - (sold separately).

Features & Benefits

• Space saving - sliding doors help create up to 8% more living more space within a property
• Easy access
• Quiet operation
• Easy installation
• Economical
• Prefabricated components

Dimensions - Frame Sizes & Door Kit Sizes Available

• Please note fire-board (fire rated plasterboard) is not provided with this kit and must be bought separately.

•  15mm x 4mm Intumescent fire seals must be fitted into the door jamb - supplied with white intumescent seals

Items Included Within The Eclisse Pocket Sliding Door Kit

• Metal frame work to create the "pocket"
• Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
• Roller bearing door hanger kit
• Timber lining kit - (door jamb kit with integrated architraves)
• 15mm x 4mm White intumescent fire seals
• Doors not included.

Installation Video
