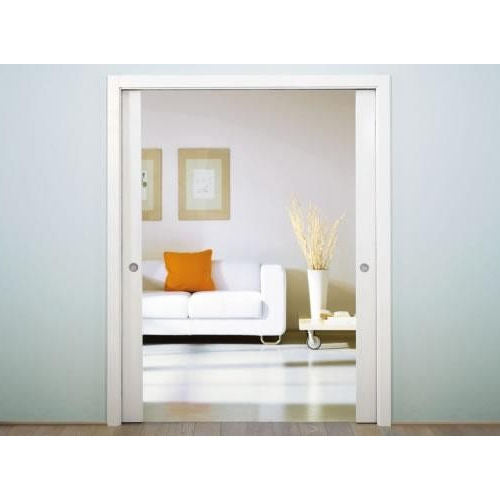

Eclisse Sliding Pocket Door System - Double Door Kit - 100mm Finished Wall Thickness

• The Eclisse double sliding door gear system is designed for use with sliding double internal pocket hideaway doors weighing up to 80kg.

• Allows interior doubles doors to slide into "pockets" within the wall cavity.

• Each set includes all the main components needed to install a long lasting, smooth running double sliding doors including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into. (Doors and plasterboard not included).

• This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 100 mm.

• Supplied as a kit to create two pockets.

• Can be fully fitted in under 60 minutes by a skilled installer.

• Suitable for use with timber doors only - doors not included. (Eclisse kits to suit glass doors are also available).

• Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining - jamb kits.

Accessories Available To Suit The Eclisse Double Door System

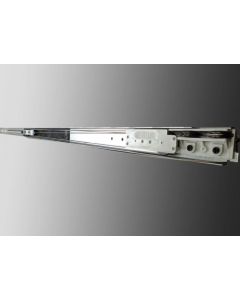

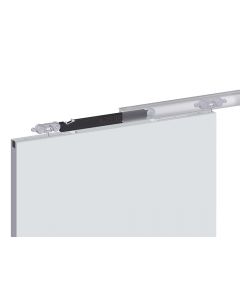

• Soft close mechanism - to dampen softly close the sliding door. - (sold separately).

• Self closing mechanism - automatically pulls the door closed each time the door had been opened. Please note that two self close mechanisms are required (one for each door) for the set to be self closing - (sold separately).

• Double door co-ordinator - sliding open one of the doors automatically opens the second door at the same time.- (sold separately).

• Motorised units - to automatically open the door. (sold separately).

Features & Benefits

• Space saving - sliding doors help create up to 8% more living more space within a property
• Easy access
• Quiet operation
• Easy installation
• Economical
• Prefabricated components

Dimensions - Frame Sizes & Door Kit Sizes Available

• * Double door kit to suit a 125mm finished wall thickness also available - see product 40155

• Please note plasterboard is not provided with this kit and must be bought separately.

Items Included Within The Eclisse Double Door Pocket Sliding Door Kit

• Metal frame work to create two "pockets"
• Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
• Roller bearing door hanger kits

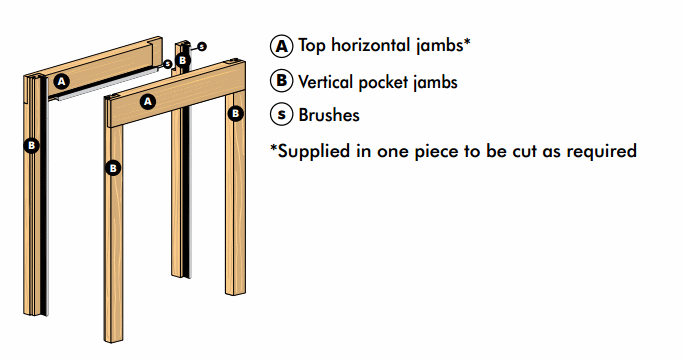

• Timber lining kit - (door jamb kit) including brush seals.

Eclisse Standard Pocket Door Kit - Installation Video

Eclisse Jamb Kit - Installation Video
