Eclisse Sliding Pocket Door System - Single Door Kit - 115mm Finished Wall Thickness

• The Eclisse sliding door gear system is designed for use with sliding internal pocket hideaway doors weighing up to 80kg.

• Allows an interior door to slide into a "pocket" within the wall cavity.

• Each set includes all the main components needed to install a long lasting, smooth running sliding door including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.

• This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall of 115mm.

• Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.

• Suitable for use with timber doors only - door not included.

• Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining - jamb kits.

Accessories Available To Suit Eclisse System

• Soft close mechanism - to dampen softly close the sliding door. - (sold separately).

• Self closing mechanism - automatically pulls the door closed each time the door had been opened. - (sold separately).

• Motorised units - to automatically open the door. (sold separately).

Features & Benefits

• Space saving - sliding doors help create up to 8% more living more space within a property
• Easy access
• Quiet operation
• Easy installation
• Economical
• Prefabricated components

Dimensions - Frame Sizes & Door Kit Sizes Available

• * Single door kit to suit a 95mm finished wall thickness also available - see product 49291

• Please note plasterboard is not provided with this kit and must be bought separately.

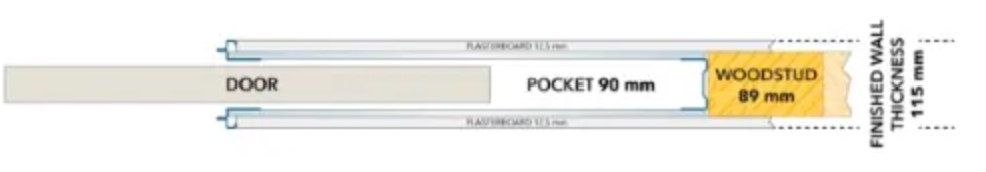

Finshed Wall Thickness

• 115mm finished wall thickness - designed for use with 89mm wooden studwork.

Items Included Within The Eclisse Pocket Sliding Door Kit

• Metal frame work to create the "pocket"
• Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
• Roller bearing door hanger kit
• Timber lining kit - (door jamb kit) including brush seals and rubber bumpers.

Eclisse Standard Pocket Door Kit - Installation Video

Eclisse Jamb Kit - Installation Video
