The Eclisse sliding door kit is designed for use with sliding internal pocket hideaway doors weighing up to 80kg.
Allows an interior door to slide into a "pocket" within the wall cavity.

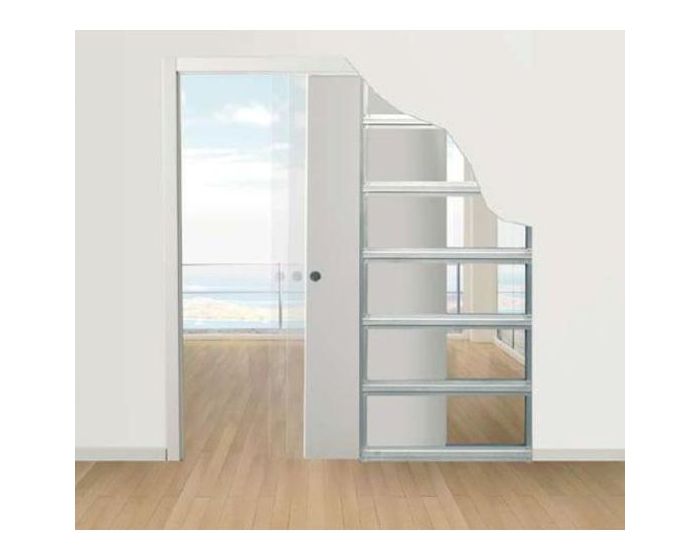

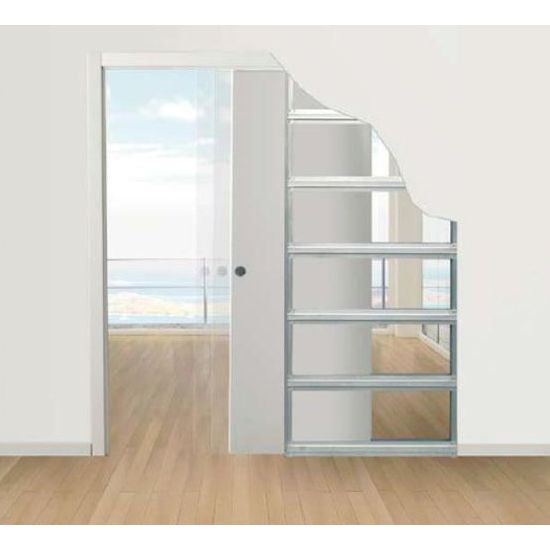

Each set includes all the main components needed to install a long-lasting, smooth-running sliding door, including steel-wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
This high-quality sliding door gear is suitable for residential and commercial applications. Its unique design allows doors between 35 mm and 45 mm thick to be installed with a finished wall of 125 mm.
Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
It is suitable for use with timber doors only€”the door is not included. (Eclisse kits to suit glass doors are also available.)
Unlike other pocket door systems on the market the Eclisse system comes supplied complete with timber lining-jamb kits.
Accessories Available To Suit Eclisse Pocket Door Kit
Soft close mechanism - to dampen softly close the sliding door. - (sold separately).

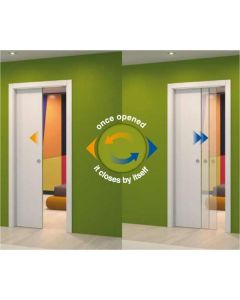

Self closing mechanism - automatically pulls the door closed each time the door had been opened. - (sold separately).
Motorised units - to automatically open the door. (sold separately).
Features & Benefits
Space saving - sliding doors help create up to 8% more living space within a property
Easy access
Quiet operation
Easy installation
Economical
Prefabricated components
Dimensions - Frame Sizes & Door Kit Sizes Available
Item Code
Door Size (DW x DH)
Max Passage Size (PW x PH)
Overall Frame Size (W x H)
Finished Wall Thickness
40153.1
610mm x 1981mm - (2ft. 0in. x 6ft. 6in.)
585mm x 1971mm
1279mm x 2061mm
125mm*
40153.2
686mm x 1981mm - (2ft. 3in. x 6ft. 6in.)
661mm x 1971mm
1455mm x 2061mm
125mm*
40153.3
762mm x 1981mm - (2ft. 6in. x 6ft. 6in.)
737mm x 1971mm
1631mm x 2061mm
125mm*
40153.4
838mm x 1981mm - (2ft. 9in. x 6ft. 6in.)
813mm x 1971mm
1707mm x 2061mm
125mm*
40153.5
914mm x 1981mm - (3ft. 0in. x 6ft. 6in.)
900mm x 1971mm
1894mm x 2061mm
125mm*
40153.6
626mm x 2040mm
600mm x 2030mm
1294mm x 2120mm
125mm*
40153.7
726mm x 2040mm
700mm x 2030mm
1494mm x 2120mm
125mm*
40153.8
826mm x 2040mm
800mm x 2030mm
1694mm x 2120mm
125mm*
40153.9
926mm x 2040mm
900mm x 2030mm
1894mm x 2120mm
125mm*
40153.10
1026mm x 2040mm
1000mm x 2030mm
2094mm x 2120mm
125mm*
* Single door kit to suit a 100mm finished wall thickness also available - see product 40152
Please note plasterboard is not provided with this kit and must be bought separately.
Items Included Within The Eclisse Pocket Sliding Door Kit
Metal frame work to create the "pocket"
Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
Roller bearing door hanger kit

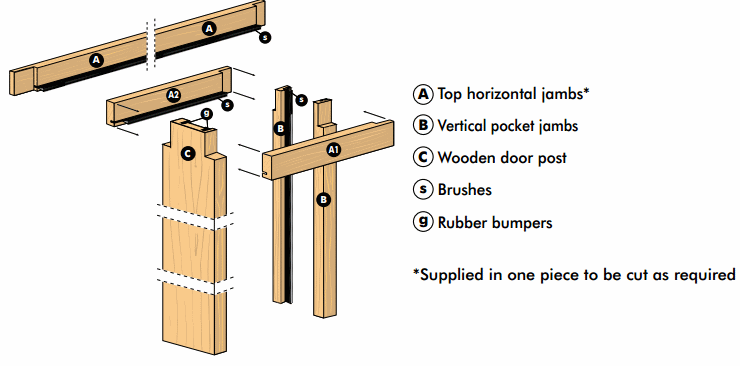

Timber lining kit - (door jamb kit) including brush seals and rubber bumpers.
Eclisse Standard Pocket Door Kit - Installation Video
At GJohns & Sons we get a lot of interest in our internal sliding door kits. As well as being a stylish addition to any interior they also have the extra benefit of reclaiming that dead space in rooms, which people cannot use because of the way traditional doors operate. Being based in London, where space is at an absolute premium, it’s no wonder so many of our customers are interested in this fantastic product.
