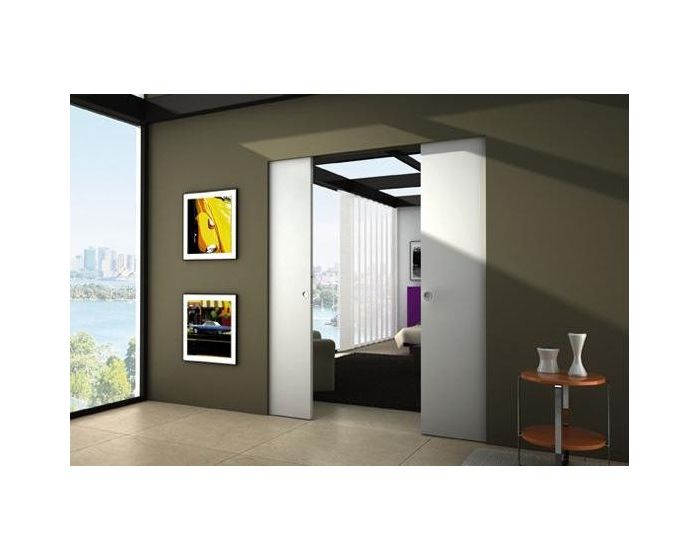

Eclisse Syntesis - Architrave Free Sliding Pocket Door System - Double Door Kit - 100mm Finished Wall Thickness
Catalogue Number:
40158
Related Products
- The Eclisse Syntesis sliding door gear system is designed for use with sliding double internal pocket hideaway doors that have no architraves or door jambs.
- A double sliding pocket door system for a clean, contemporary, minimalist finish this sliding door kit is an ingenious system that allows you to eliminate the use of architraves. and jambs and just see the clean lines of the wall and door.
- The special corner profiles supplied with this system mean the edges are plastered in with the same plaster as the walls, the result being a consistent paint finish which will not age at different rates.
- The Syntesis range has been designed to be the strongest of its type on the market, flex is reduced to a minimum using stronger profiles, reinforced joints and top quality materials. This is a product that will last!
- Suitable for use with doors up to 80kg
- Allows an two interior doors to slide into a "pockets" within the wall cavity to create double doors.
- Each set includes all the main components needed to install a long lasting, smooth running sliding doors including steel wrapped studs used to create the wall cavity or "pocket" for the door to slide into.
- This high quality sliding door gear is suitable for residential and commercial applications. The unique design allows doors between 35mm-44mm thick to be installed with a finished wall of 100 mm.
- Suitable for use with timber double doors. (Doors not included).
Features & Benefits
- Space saving - sliding doors help create up to 8% more living more space within a property
- No architraves or door jambs required
- Easy access
- Quiet operation
- Easy installation
- Economical
- Prefabricated components
Accessories
- 43129.1 - BIAS anti-slam soft close mechanism.
Dimensions - Frame Sizes & Door Kit Sizes Available
| Item Code | Door Size - Each Door (DW x DH) | Passage Size (A x PH) | Overall Frame Size (W x H) | Finished Wall Thickness |
|---|---|---|---|---|
| 40158.1 | 610mm x 1981mm - (2ft. 0in. x 6ft. 6in.) | 1168mm x 1989mm | 2668mm x 2049mm | 100mm |
| 40158.2 | 686mm x 1981mm - (2ft. 3in. x 6ft. 6in.) | 1320mm x 1989mm | 3020mm x 2049mm | 100mm |
| 40158.3 | 762mm x 1981mm - (2ft. 6in. x 6ft. 6in.) | 1472mm x 1989mm | 3372mm x 2049mm | 100mm |
| 40158.4 | 838mm x 1981mm - (2ft. 9in. x 6ft. 6in.) | 1624mm x 1989mm | 3524mm x 2049mm | 100mm |
| 40158.5 | 914mm x 1981mm - (3ft. 0in. x 6ft. 6in.) | 1776mm x 1989mm | 3876mm x 2049mm | 100mm |
| 40158.6 | 626mm x 2040mm | 1200mm x 2048mm | 2700mm x 2108mm | 100mm |
| 40158.7 | 726mm x 2040mm | 1400mm x 2048mm | 3100mm x 2108mm | 100mm |
| 40158.8 | 826mm x 2040mm | 1600mm x 2048mm | 3500mm x 2108mm | 100mm |
| 40158.9 | 926mm x 2040mm | 1800mm x 2048mm | 3900mm x 2108mm | 100mm |
| 40158.10 | 1026mm x 2040mm | 2000mm x 2048mm | 4300mm x 2108mm | 100mm |
- Please note plasterboard is not provided with this kit and must be bought separately.
- Please note the Syntesis kit must be routered 200mm x 20mm into two positions in the top of your door, please make sure the top rail of you chosen door is deep enough to accommodate this routing.
Items Included Within The Eclisse Syntesis Double Door Pocket Sliding Door Kit
- Metal frame work to create two "pockets"
- Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
- Roller bearing door hanger kits
Video Showing How To Construct The Syntesis Architrave Free Single Door Pocket Sliding Door Kit
Video Showing How To Install The Door On The Syntesis Architrave Free Single Door Pocket Sliding Door Kit
Video Showing How To Plaster The Eclisse Syntesis Architrave Free Single Door Pocket Sliding Door Kit
| Item | 40158 |
|---|---|
| Item Code | 40158 |
| Finish | - |
| Dimensions | 100mm Wall Thickness |
| Sold Per | Kit |
| Availability | Non stock product - sent direct from factory - please allow 1-2 working days for delivery |
Non stock product - sent direct from factory - please allow 1-2 working days for delivery
-
