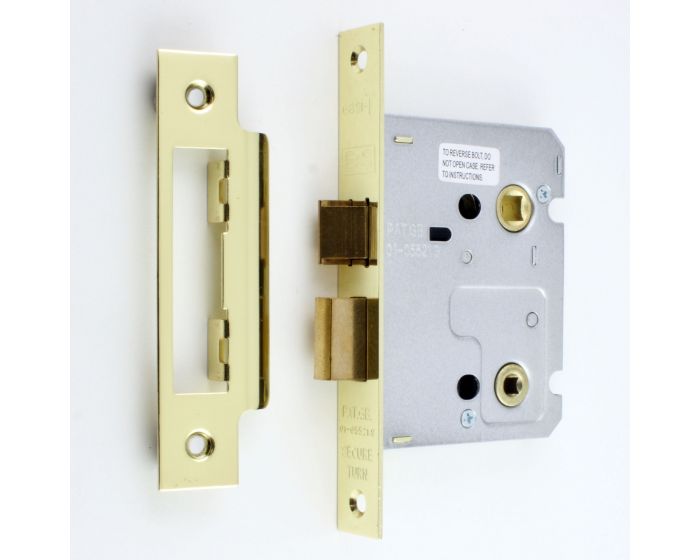

Economy Bathroom Mortice Lock - CE / UKCA Marked - Fire Rated - Certifire Approved - To Suit 5mm Spindle - Polished Brass Plated

• Economy mortice bathroom lock, polished brass plated finish.

• Privacy lock for use on bathroom doors, toilets and WC doors.

• For use on doors that require door handles and need to be locked via a thumb-turn and release system.

• Must be used in conjunction with some form of door handle.

• Comes supplied with a brass plated (shiny finish) forend and frame mounted strike plate.

Operation

• Latch is withdrawn via a lever handle from either side of the door (handles sold separately).

• Deadbolt can be locked and un-locked via a bathroom thumb-turn and release system (sold separately).

• This lock can be released from the outside in case of an emergency when used in conjunction with a turn and release.

• Only a quarter turn is required on the thumb-turn to lock and un-lock the dead bolt.

Features

• Solid brass deadbolt and latch.

• Medium weight spring strength ideal for use with sprung lever furniture.

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size door handles).

• Patented latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

Finish

• Brass plated - (shiny finish ideal for matching with polished brass and PVD brass products).

Alternative Finishes Available

• Nickel plated.

• Florentine bronze - (antique finish).

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

• Lever handle follower - 8mm x 8mm.

• Dead bolt follower - 5mm x 5mm.

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F-BG20.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.

• Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for more details.

Unit Of Sale

• Each - (1 x lock case supplied with forend, strike plate).
