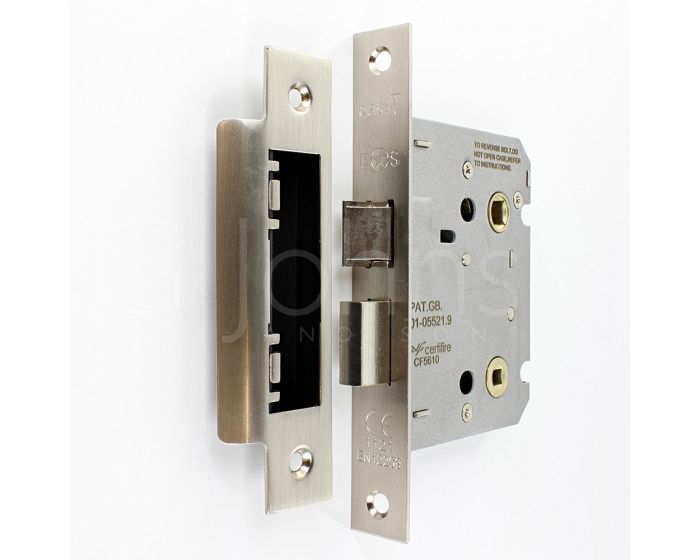

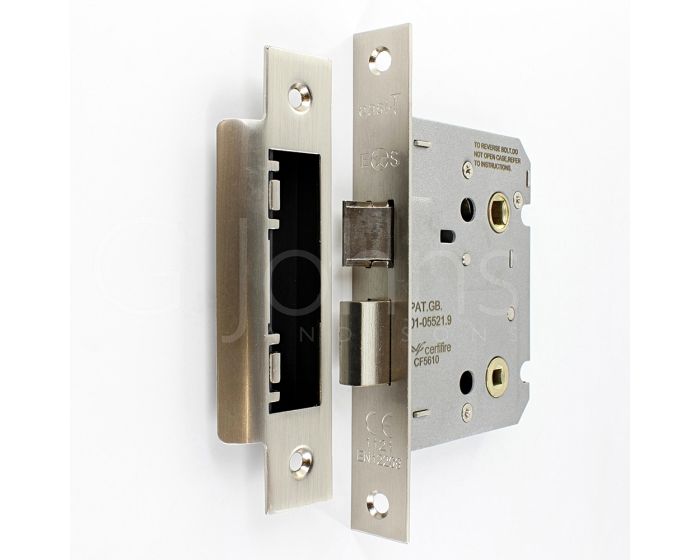

Privacy lock for use on bathroom doors, toilets and WC doors.
For use on doors that require door handles and need to be locked via a thumb-turn and release system.
Must be used in conjunction with some form of door handle.
Comes supplied with a satin nickel forend and frame mounted strike plate.
Operation
Latch is withdrawn via a lever handle from either side of the door (handles sold separately).
Deadbolt can be locked and un-locked via a bathroom thumb-turn and release system (sold separately).
This lock can be released from the outside in case of an emergency when used in conjunction with a turn and release.
Only a quarter turn is required on the thumb-turn to lock and un-lock the dead bolt.
Features
Solid brass deadbolt and latch.
Medium weight spring strength ideal for use with sprung lever furniture.
Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
8mm x 8mm spindle follower (to suit standard UK size door handles).
5mm x 5mm thumb-turn spindle follower (to suit standard UK size turn and release systems).
Patented Easi-T latch reversal mechanism. - Latch can be reversed on site without taking the lock case apart.
Reversible and adjustable strike plate.
Security Level
Low security economy range.
Suitable for use on internal doors in residential properties.
Privacy lock.
Finish
Satin nickel
Dimensions
Available in two sizes
64mm case depth (44mm backset).
76mm case depth (57mm backset).
Item Code
Lock Case Depth (A)
Backset To Keyhole (B)
41487.1
64mm
44mm
41487.2
76mm
57mm
Lever handle follower - 8mm x 8mm.
Dead bolt follower - 5mm x 5mm.
Standards This Product Conforms To
Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 2H810F-BG20.
Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
Certifire approved.
CE Marked / UKCA Marked.
Declaration of performance (DoP) - please see the additional information tab to download the certificate.
Options Available To Order
This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for more details.
Unit Of Sale
Each - (1 x lock case supplied with forend, strike plate).
