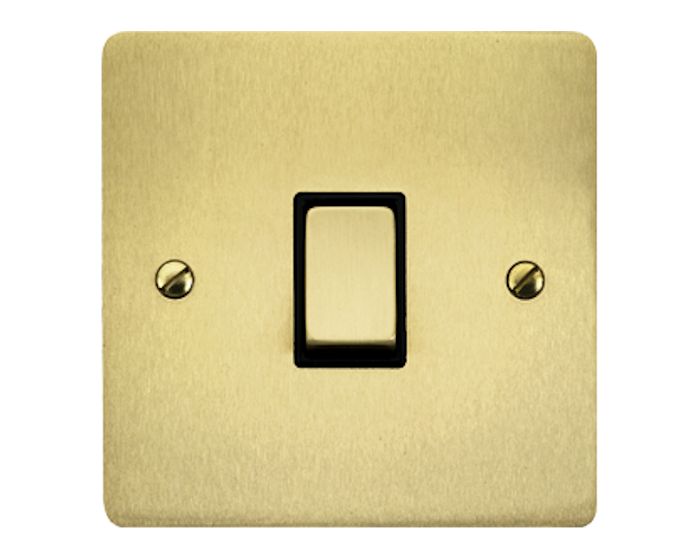

Elite Flat Plate Light Switch & Socket Range - Flat Plate With Rounded Edges - Satin Brass (Lacquered)

• Elite flat plate range of light switches, dimmers and sockets.

• Flat plate with rounded edges – T04 design.

• 1.5mm thick plate.

Finish

• Satin (brushed) brass plate.

• Matching satin brass switches.

• Choice of black or white trims.

Sizes

• Single plate - 86mm x 86mm.

• Double plate - 147mm x 86mm.

Specials

• If you're unable to find switch of socket you require in the list below, please contact us as we're able to produce a wide range of specials.

Rocker Switches - 10amp - 25mm Box Depth Required

• 1 Gang 2 Way Rocker Switch
• 2 Gang 2 Way Rocker Switch
• 3 Gang 2 Way Rocker Switch
• 4 Gang 2 Way Rocker Switch
• 1 Gang Intermediate Rocker Switch

Dolly Toggle Switches - 10amp - 35mm Box Depth Required

• 1 Gang 2 Way Dolly Toggle Switch
• 2 Gang 2 Way Dolly Toggle Switch
• 3 Gang 2 Way Dolly Toggle Switch
• 4 Gang 2 Way Dolly Toggle Switch
• 1 Gang Intermediate Dolly Toggle Switch

Dimer Switches -  35mm Box Depth Required

• 1 Gang Dimmer Switch - 250 Watts
• 1 Gang Dimmer Switch - 400 Watts
• 1 Gang Dimmer Switch - Trailing Edge For LED Bulbs
• 2 Gang Dimmer Switch - 250 Watts
• 2 Gang Dimmer Switch - 400 Watts
• 2 Gang Dimmer Switch - Trailing Edge For LED Bulbs
• 3 Gang Dimmer Switch - 250 Watts
• 3 Gang Dimmer Switch - 400 Watts
• 3 Gang Dimmer Switch - Trailing Edge For LED Bulbs
• 4 Gang Dimmer Switch - 250 Watts
• 4 Gang Dimmer Switch - 400 Watts
• 4 Gang Dimmer Switch - Trailing Edge For LED Bulbs

Switched Power Switches - 13amp - 35mm Box Depth Required

• Single Switched Socket
• Double Switched Socket
• Double Switched Socket With USB Chargers (1x 1amp USB and 1 x 2amp USB)

Fused Spurs - 13amp - 35mm Box Depth Required

• Fused Spur
• Switched Fused Spur
• Switched Fused Spur With Neon Indicator
• Switched Fused Spur With Neon & Flex Outlet

Euro Module Plates

• 1 Module Euro Plate
• 2 Module Euro Plate
• 4 Module Euro Plate

Cooker Switches - 45amp - 35mm - 48mm Box Depth Required

• Double Pole Switch
• Double Pole Switch With Neon Indicator
• Cooker Switch (Single Plate)
• Cooker Switch With 13amp Single Socket

• Triple Pole Fan Isolation Switch - 6amp - 25mm Box Depth
• Round 3 Pin Socket (Unswitched) - 5amp - 35mm Box Depth
• Shaver Socket With Dual Output - 110v / 240v - 48mm Box Depth

TV & Satellite Sockets - 35mm Box Depth Required

• Single Non-Isolated TV / Coaxial Socket
• Single Isolated TV / Coaxial Socket
• Twin Non-Isolated TV / Coaxial Socket
• TV/FM Diplexed Coaxial Socket
• Satellite Socket
• TV / Satellite Socket

Telephone & Data Sockets - 35mm Box Depth Required

• 1 Gang Secondary Telephone Line Socket
• 1 Gang Master Telephone Line Socket
• 2 Gang Secondary Telephone Line Socket
• 2 Gang Master Telephone Line Socket
• 1 Gang RJ45 Data Socket
• 2 Gang RJ45 Data Socket
• 1 Gang RJ11 Socket

Blanking Plates

• Single Section Blank Plate
• Double Section Blank Plate

Important Information:

• USB sockets are fitted with 1 x 1amp USB charger and 1 x 2amp USB charger.

Trailing Edge Dimmers for LED bulbs

• Maximum of 10 LED lamps per module.

• Minimum load 0 W per module. Maximum load 120 W per module.

• Suitable for most quality dimmable LED lamps.

• Compatibility is not guaranteed with all LED bulbs.

Box Depth

• When installing electrical accessories it is important to ensure that wall boxes of adequate depth are used.

• The box depth should comfortably accommodate the accessory and its connecting cables, and is particularly important with flat plate ranges and power accessories.

• The product selector table above gives recommended box depths for normal installation conditions.
