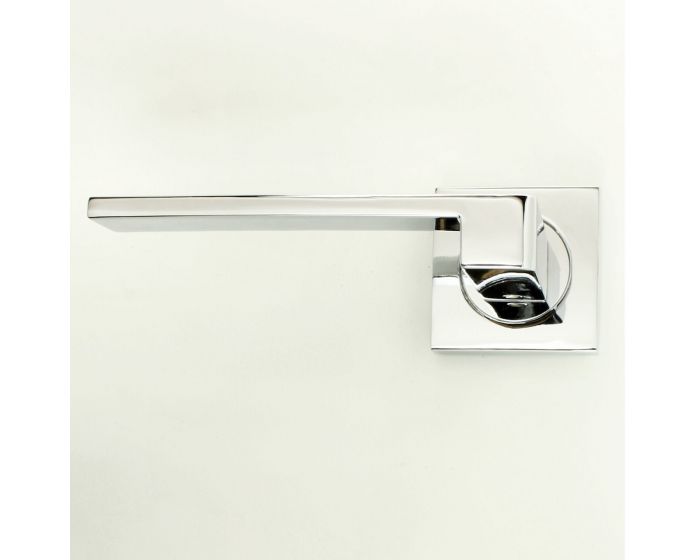

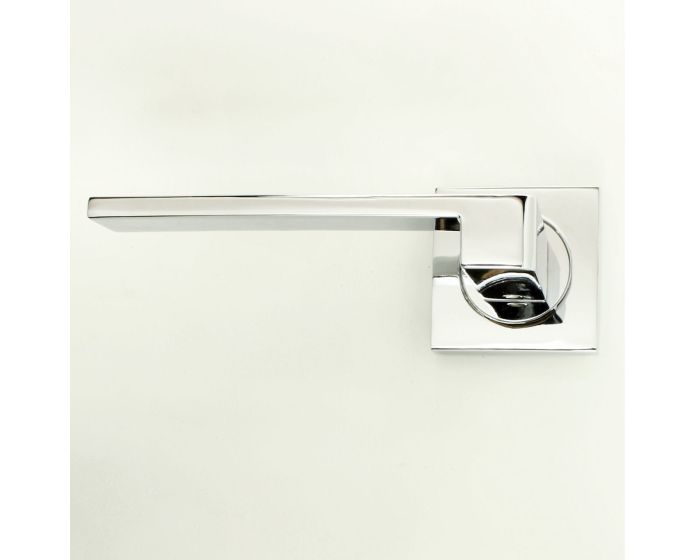

Equi Lever On Square Rose - Polished Chrome - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30137
Full Description Related Products
Product Name Price Qty
30137.1 - Equi Lever On Square Rose Lever Handles Only - Tested For Use With FD30 / FD60 Fire Doors - Polished Chrome - Pair
£45.00 £37.50

Per Pair
Enquire Now
  • SZM370CP Equi lever on square shape rose from the Carlisle Brass - Serozzetta M collection. A modern design shiny finish door handle with a flat rectangular shape lever.
  • Polished (shiny) chrome finish.
  • Concealed fixings via screw on square rose.
  • Suitable for residential use.
  • Matching square polished chrome accessories are available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

  • For Non-Locking Doors - 1 x (Pair) Lever Handles Only

Diagram showing levers handle only for non-locking doors

  • For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

Diagram showing lever handles and standard escutcheons for locking doors

  • For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

Diagram showing lever handles with euro profile escutcheon for doors locking via Euro profile cylinder

  • For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Diagram showing lever handles with a bathroom turn and emergency release set for locking bathroom doors

Matching Accessories

  • Standard escutcheon - (key hole cover to suit regular "chubb style locks")

  • Euro profile escutcheon - (key hole cover to suit euro profile cylinders)

  • Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

  • Made from zinc alloy.

Finish Details

  • Polished Chrome - A highly shiny, smooth, mirror like finish. Polished Chrome has a very slight blue tint.
  • The zinc alloy base material has been highly polished and chrome plated to produce this finish.

Alternative Finishes Available

  • Satin (brushed) chrome
  • Black nickel

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

  • Rose - 52mm x 52mm
  • Rose Thickness - 10mm
  • Lever Length - 124mm

Spindle Size

  • 8mm x 8mm square - UK Standard.

Fixings

  • Screw on square rose.
  • Concealed bolt together fixing.
  • Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
  • Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

  • Suitable for residential use.
  • Suitable for internal or external use.

Unit Of Sale

  • Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
  • Escutcheons (key hole covers) are sold individually (each.)
  • Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
More Information
Item 30137
Item Code 30137
Finish Polished Chrome
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Pair
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
