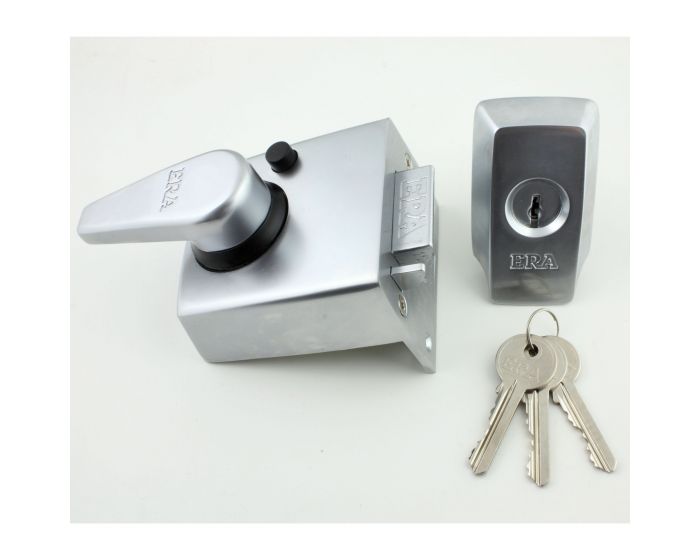

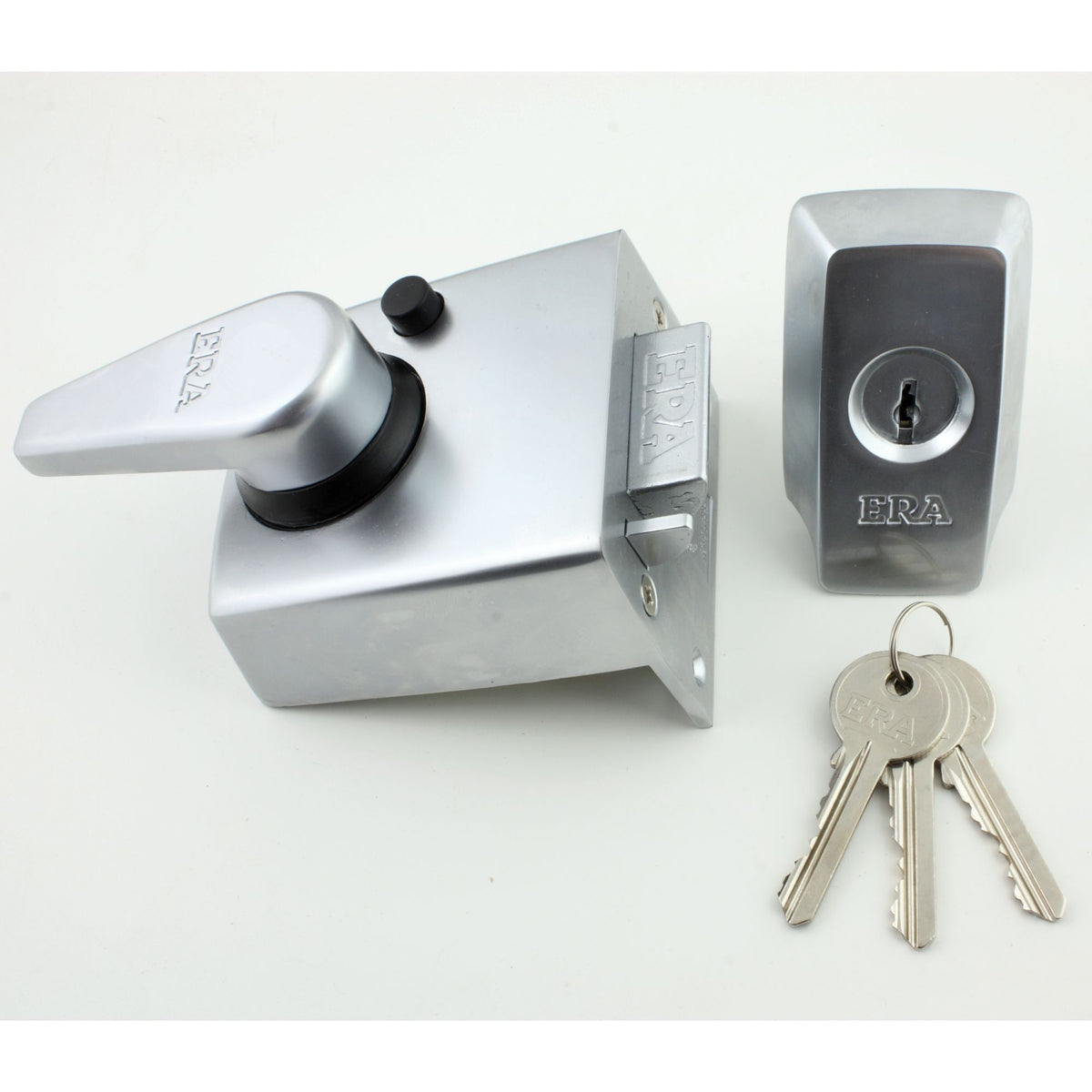

ERA High Security British Standard BS8621 Rated - Escape Night Latch With Ant-Thrust - Satin Chrome
Catalogue Number:
40307
TO SUIT MAXIMUM DOOR THICKNESS OF 54MM
- British standard high security escape night latch.
- Conforms to British Standard BS8621:2004 and meets the tough criteria laid down by the insurance companies and the Police (Secure By Design)
- This egress night latch offers insurance rated security while still allowing adequate means of escape in the event of an emergency.
- This lock cannot double locked, allowing for escape at all times.
- Features an integral cylinder pull which protects the cylinder from being drilled
- The cylinder has over 30,000 key variations and comes with a 20mm bolt throw for greater security and strength.
Finish
- Satin chrome
Dimensions
AVAILABLE IN TWO SIZES | 40307.1 | 40307.2 |
Dimension On Diagram
|
---|---|---|---|
Backset |
40mm
|
60mm
|
A
|
Case Width |
70mm
|
90mm
|
B
|
Case Height |
86mm
|
86mm
|
C
|
Case Depth |
33mm
|
33mm
|
D
|
Lever Projection From Case |
25.5mm
|
25.5mm
|
E
|
Cylinder Height |
83mm
|
83mm
|
F
|
Cylinder Width |
50mm
|
50mm
|
G
|
Important Info Before You Buy
- For use on inward opening doors only
- Latch bolt is withdrawn by handle from inside and by turn of key from outside.
- Bolt can be held back by pushing the button on lock case, then released by turning the handle up or down
- The main lock bolt “automatically” deadlocks, when the door is closed this makes the use of a credit card to force entry virtually impossible
- Supplied with three keys
Item | 40307 |
---|---|
Item Code | 40307 |
Finish | Satin Chrome |
Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
