Satin Chrome ERA Lock - High Security Night Latch - BS3621 Rated
Catalogue Number:
15019

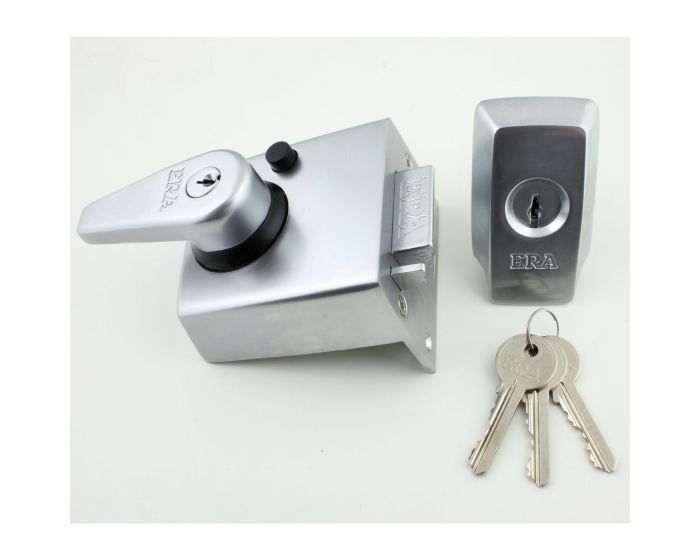

ERA Lock - British Standard High Security Night Latch
- Conforms to British Standard BS 3621:2004 and meets tough criteria laid down by the insurance companies and the Police (Secured By Design)
- Features an integral cylinder pull which protects the cylinder from being drilled
- The cylinder has over 30,000 key variations and comes with a 20mm bolt throw for greater security and strength
Technical Specification
- Finish - Satin Chrome
- Also available in Matt Black, Polished Brass, Polished Chrome and Satin Nickel
- Fit - to suit maximum door thickness of 54mm
Dimensions
AVAILABLE IN TWO SIZES
|
15019.1 | 15019.2 |
Dimension On Diagram
|
---|---|---|---|
Backset
|
40mm
|
60mm
|
A
|
Case Width
|
70mm
|
90mm
|
B
|
Case Height
|
86mm
|
86mm
|
C
|
Case Depth
|
33mm
|
33mm
|
D
|
Lever Projection From Case
|
25.5mm
|
25.5mm
|
E
|
Cylinder Height
|
83mm
|
83mm
|
F
|
Cylinder Width
|
50mm
|
50mm
|
G
|
More Information
- For use on inward opening doors only
- The night latch can be dead-locked (double-locked). This is done from the INSIDE by a full turn of the key
- Double locks from inside, so if someone was to break the glass in a front door or a nearby window, they can't unlock the night latch without the use of the key
- Latch bolt is withdrawn by handle from inside and by turning the key from the outside
- Bolt can be held back by pushing the button on lock case, then released by turning the handle up or down
- The main lock bolt “automatically” deadlocks. When the door is closed this makes the use of a credit card to force entry virtually impossible
- Comes with three keys
Item | 15019 |
---|---|
Item Code | 15019 |
Finish | Satin Chrome |
Sold Per | Each |
Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
